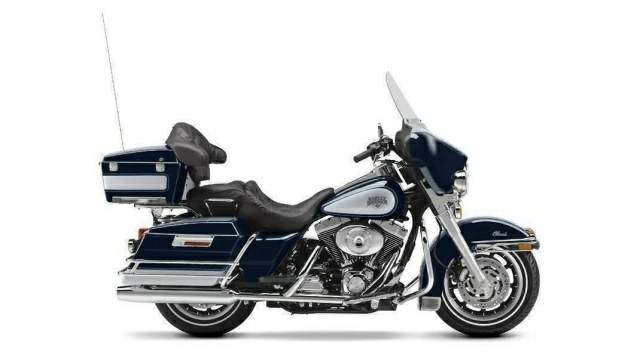

Harley Davidson FLHTC Electra Glide Classic







Make Model

Harley Davidson FLHTC Electra Glide Classic

Year

1994 - 98

Engine

Four stroke, 45° V-Twin, Twin Cam 88® vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder

Capacity

1449 cc / 88.4 cu-in
Bore x Stroke 95.3 x 101.6 mm
Cooling System Air cooled
Compression Ratio 8.9:1
Lubrication Dry sump, internally mounted, crank driven gerotor pressure and dual scavenge pump with spin on 10ì pressurized oil filter

Induction

Carburetion 40 mm constant velocity with enrichener and accelerator pump

Ignition

Single-fire, non-wasted, map-controlled spark ignition
Starting Electric

Max Power

67 hp / 48.8 kW @ 5200 rpm

Max Torque

116.6 Nm / 86 lb-ft @ 3500rpm
Clutch Wet 9-plate

Transmission

5 Speed
Final Drive Belt
Gear Ratio 1st 10.11  2nd 6.96  3rd 4.95  4th 3.86  5th 3.15
Frame Mild steel; square-section backbone with twin downtubes Swing Arm Mild steel, rectangular section

Front Suspension

Cartridge style damping

Rear Suspension

Air-adjustable

Front Brakes

2x 292mm discs 4 piston calipers

Rear Brakes

Single 292mm disc 4 piston caliper

Front Tyre

MT90-16T

Rear Tyre

MT90-16
Rake 26°
Trail 157.5 mm / 6.2 in
Dimensions Length 2497 mm / 98.3 in
Wheelbase 1612.9 mm / 63.5 in
Seat Height 692 mm / 27.2 in
Gross Vehicle Weight Rating  571.6 kg / 1259 lbs

Dry Weight

352 kg  /  776 lb

Fuel Capacity

19 Litres / 5.0 US gal
