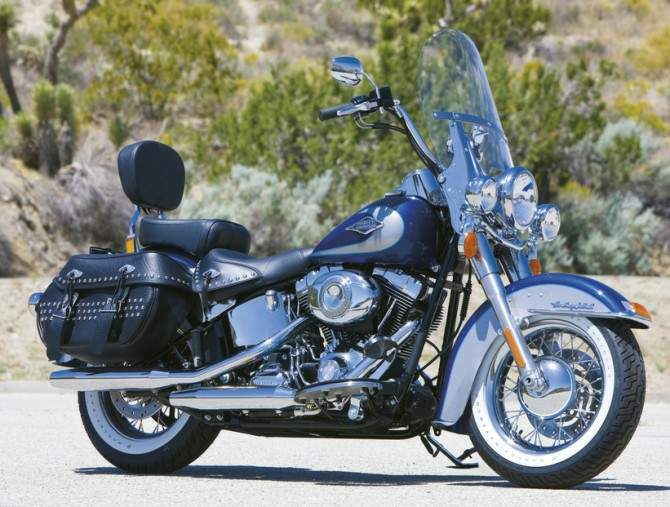

Harley Davidson FLSTC Heritage Softail Classic

Make Model	Harley Davidson FLSTC Heritage Softail Classic
Year	2009
Engine	Four stroke, 45° V-Twin, Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder
Capacity	1584 cc / 96 cu-in
Bore x Stroke	95.2 x 111.2 mm
Cooling System	Air cooled
Compression Ratio	9.2:1
Induction	Electronic Sequential Port Fuel Injection (ESPFI)
Ignition	Single-fire, non-wasted, map-controlled spark ignition
Starring	Electric
Max Torque	124.7 Nm / 92 ft. lbs @ 3000 rpm
Transmission	6 Speed
Final Drive	Belt
Gear Ratio	1st 9.312 9.312 9.030 2nd 6.421 6.421 6.226 3rd 4.774 4.774 4.630 4th 3.926 3.926 3.807 5th 3.279 3.279 3.179 6th 2.790 2.790 2.706 3
Frame	Mild steel, tubular frame; rectangular section backbone; stamped, cast and forged junctions, forged fender supports; MIG welded
Front Suspension	41.3 mm telescopic, “beer can” covers
Rear Suspension	Hidden, horizontal-mounted, coil-over shock
Front Brakes	Single 292mm disc 4 piston caliper
Rear Brakes	Single 292mm disc 4 piston caliper
Front Tyre	MT90B16 72H
Rear Tyre	150/80B16 71H
Rake	32°
Fork Angle	32°
Dimensions	Length 2400.3 mm / 94.5 in Width 995.0 mm / 39.2 in Height 1120.0 mm / 44.1 in
Wheelbase	1638 mm / 64.5 in
Seat Height	Laden2 647.7 mm / 25.5 in Unladen 697 mm / 27.4 in.
Gross Vehicle Weight Rating	526.0 kg / 1160 lbs
Dry Weight	329 kg / 725 lbs.
Wet Weight	340 kg / 750 lbs
Fuel Capacity	18 9 Litres / 5.0 US gal

The refreshed styling of the Harley-Davidson FLSTC Heritage Softail Classic highlights the eight-model Harley-Davidson Softail line for 2009. No single line of motorcycles offers more diversity in styling and attitude – from the rough-and-tumble Cross Bones bobber and the broad-shouldered Fat Boy, to the nostalgic Softail Deluxe and the radical Rocker. The Softail family represents the fully realized custom vision of Harley-Davidson, a combination of rolling art and engineering excellence that is often copied but never matched in the world of motorcycle design.

Named for its rear-suspension design, which mimics the lines of a vintage hard-tail frame but offers the comfort of modern suspension that is hidden under the chassis, every Softail has clean lines, a low seat height, and a rigid-mounted, counter-balanced Twin Cam 96B powertrain. The rigid powertrain allows tight packaging of the engine and frame and creates a solid connection between the rider and the power that moves the motorcycle, enhancing the emotional experience of riding.

Each Softail model also features the 6-speed Cruise Drive transmission for outstanding mid-range torque and relaxed engine speed when cruising. Electronic Sequential Port Fuel Injection (ESPFI) enhances engine efficiency, provides crisp throttle response and easy starting, and self-adjusts for changing environmental conditions to maintain performance. A horseshoe oil tank located below the seat, forward foot controls or foot boards, the classic Fat Bob fuel tank, and the perfect execution of custom detail in paint and metal are design elements that define each Softail model.

Refreshed FLSTC Heritage Softail Classic
The Heritage Softail Classic receives a number of other, more-subtle styling changes and new components that shift this popular model in a new, retro direction for 2009. The beefy FL front end features a front fender and chrome nacelle with clean new styling cues, while taller handlebars change the rider’s profile. The fuel tank has new glass-filled, 3-D badges and is topped with a classic “Cat Eye” console and matching retro speedometer face. Half-moon rider footboards and a large, oval foot brake pad also nod to the past. The passenger seat and backrest have been revised for more comfort, while the sissy bar has new trim that matches the new two-tone leather console panel. Both the revised saddle bag and seat trim have been restyled. The King-Size windshield can be quickly detached for more streamlined cruising.

Features

Rigid-mount, 1584cc Twin Cam 96B balanced engine
6-speed Cruise Drive transmission
Black powder-coated engine with chrome covers
New enlarged passenger seat and backrest
New seat trim
New taller handlebar
New handlebar clamp
New fuel tank graphics and glass-filled 3-D tank badge
New saddle bag trim
New retro speedometer face
New front fender trim
New chrome nacelle style
Retro “Cat Eye” fuel tank console
Half moon rider footboards and oval brake pad
Chrome Staggered Shorty Dual exhaust
Chrome oil tank
150 mm-16 rear / MT90-16 front tire
Chrome Laced Steel wheels
FL rear fender
Five-gallon Fat Bob tank
Clear-lens reflector-optics chrome passing lamps
Chrome plated directional light bar
Detachable King-Size Lexan windshield
Leather saddlebags with quick-detach buckles
FL front forks
Chrome hub cover
Optional Chrome Aluminium Profile Laced wheels with wide white wall tires
Optional Smart Security System
