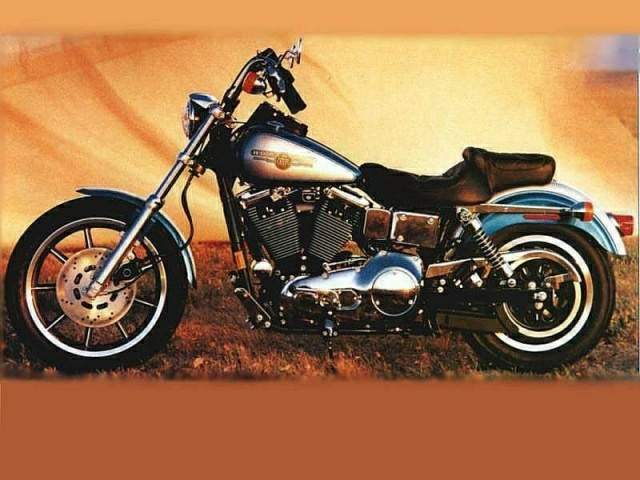

Harley Davidson FXDL Dyna Low Rider

.

Make Model

Harley Davidson FXDL Dyna Low Rider Custom

Year

1993 - 94

Engine

Four stroke, 45° V-Twin, OHV, 2 valves per cylinder.

Capacity

1337 cc / 81.5 cu-in
Bore x Stroke 88.8 x 108 mm
Cooling System Air cooled
Compression Ratio 8.5:1
Lubrication Dry sump

Induction

40mm Keihin  CV

Ignition

Battery powered inductive
Starting Electric

Max Power

52.8 hp / 39.3 kW @ 5000 rpm

Max Torque

83.6 Nm / 61.7 ft-lb @ 3000 rpm

Transmission

5 Speed
Final Drive Belt

Front Suspension

Telescopic forks

Rear Suspension

Coil over dual shock

Front Brakes

2X discs

Rear Brakes

Single disc

Front Tyre

100/90-19

Rear Tyre

130/90-16
Seat Height 673 mm / 26.5 in
Ground Clearance 117 mm / 4.6 in

Dry Weight

271.0 kg / 597.5 lbs

Fuel Capacity

18.5 Litres / 4.9 US gal
