Harley Davidson FXDWG Dyna Wide Glide 105th Anniversary Editon

.

Make Model

Harley Davidson FXDWG Dyna Wide Glide 105th Anniversary Edition

Year

2008

Engine

Four stroke, 45° V-Twin, Twin Cam 96 vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder

Capacity

1584 cc / 96 cu-in
Bore x Stroke 95.3 x 111.1 mm
Cooling System Air cooled
Compression Ratio 9.2:1

Induction

Electronic Sequential Port Fuel Injection (ESPFI)

Ignition

Single-fire, non-wasted, map-controlled spark ignition
Starting Electric

Max Torque

124.7 Nm / 92 ft/ lbs. @ 3000 rpm
Clutch Multi-plate, wet

Transmission

6 Speed
Final Drive Belt
Primary Drive Chain, 34/46 ratio
Gear Ratio 1st 9.311 /  2nd 6.454 /   3rd 4.793  /  4th 3.882  /  5th 3.307 /  6th 2.790
Frame Mild steel, tubular frame; rectangular section backbone; stamped, cast, and forged junctions; forged fender supports; MIG welded

Front Suspension

49 mm with polished aluminum fork triple clamp and dual-rate springs,

Rear Suspension

Swingarm Mild steel, rectangular tube sections, stamped junctions; MIG welded, Coil over shock ,

Front Brakes

Single 300mm disc 4 piston caliper

Rear Brakes

Single 292mm disc 4 piston caliper

Front Tyre

80/90-21

Rear Tyre

180/60B17
Rake  34°
Trail 132 mm / 5.2 in.
Dimensions Length  2387.6 mm / 94.0 in
Width   944.8 mm / 37.2 in
Height  1214.1 mm / 47.8 in
Wheelbase 1715 mm / 67.5 in
Seat Height Laden    648 mm  /  25.5 in.
Unladen .678 mm  /  26.7 in
Gross Vehicle Weight Rating 492.2 kg  / 1085 lbs

Dry Weight

293 kg / 647 lbs
Wet Weight 310 kg / 683.4 lbs

Fuel Capacity

17.8 Litres / 4.7 US gal

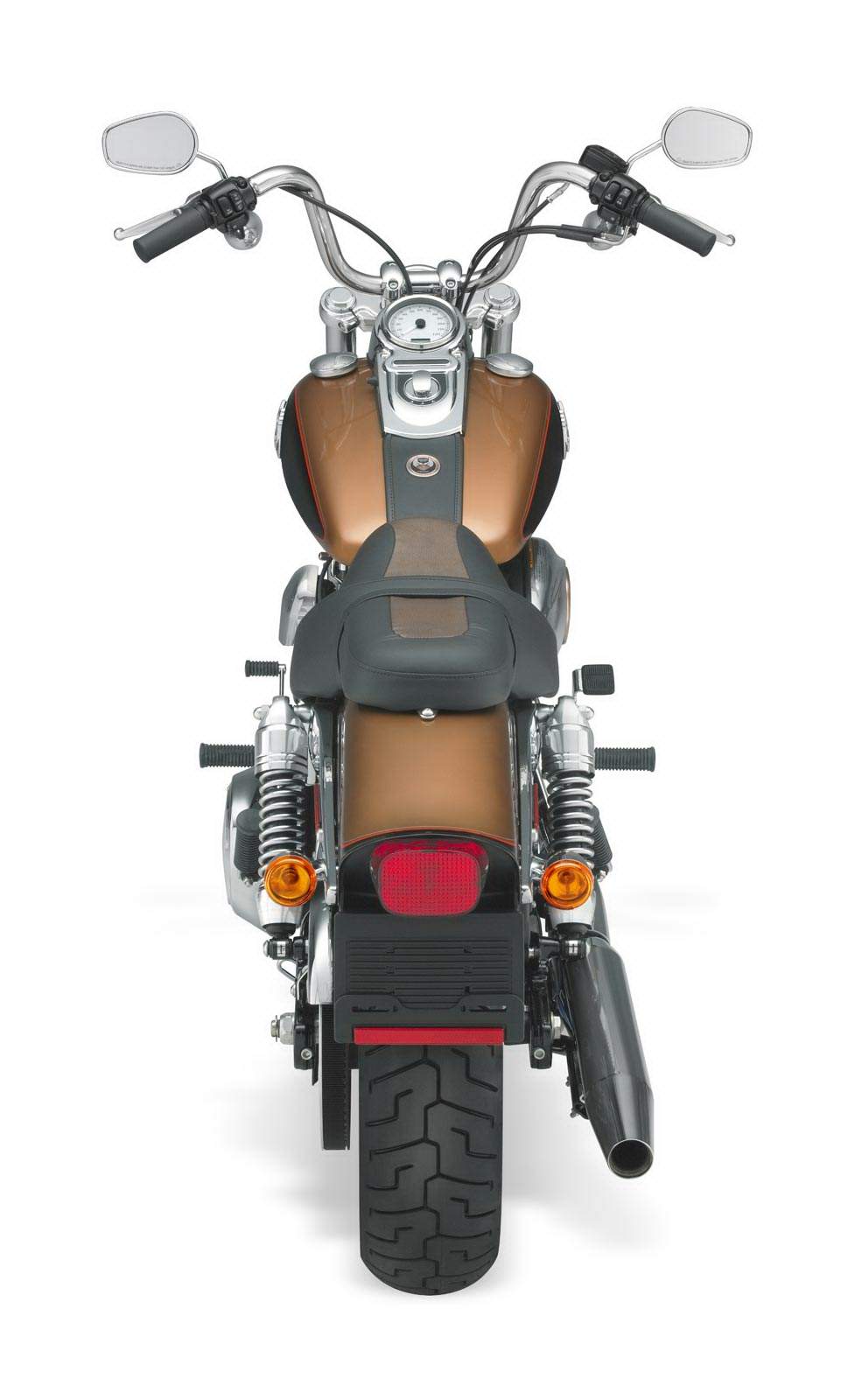

Available only as a Limited Edition 105th Anniversary model in 2008, the FXDWG Dyna Wide Glide displays the classic chopper profile, with a Bobtail rear fender and wide, raked-out, 36-degree forks holding a 21-inch Chrome Laced wheel. Fat mini-ape hanger handlebar and a stepped seat complete the theme. A two-tone paint scheme in Anniversary Copper and Vivid Black is traced with orange and pale gold pin striping. A copper Bar and Shield tank cloisonné and 105th Anniversary badges adorn the air cleaner and timing cover inserts. (See separate release for details on the Limited Edition 105th Anniversary package).

Braided Brake Lines: Braided stainless steel brake lines enhance both the style and brake feel on all 2008 Dyna models.

105th Anniversary Edition

105th Anniversary FXDWG Dyna Wide Glide features:

Vibration isolated Twin Cam 96 engine
6-Speed Cruise Drive transmission
Black powder-coated engine with chrome covers
NEW Braided brake lines
Chrome Staggered Shorty Dual exhaust
160 mm-17 rear / 90 mm-21 front tires
Chrome Aluminum Profile Laced wheels 17-inch rear / 21-inch front
Bobtail rear fender
5.1-gallon Fat Bob fuel tank
1.25-inch mini ape-hanger style handlebar with internal wiring
36-degree fork angle
Stylized battery cover
105th Anniversary badging
Forward foot controls
Large, tank-mounted speedometer
Anniversary Copper and Vivid Black two-tone paint
Two-up seat with copper-vinyl insert
Optional Smart Security System
