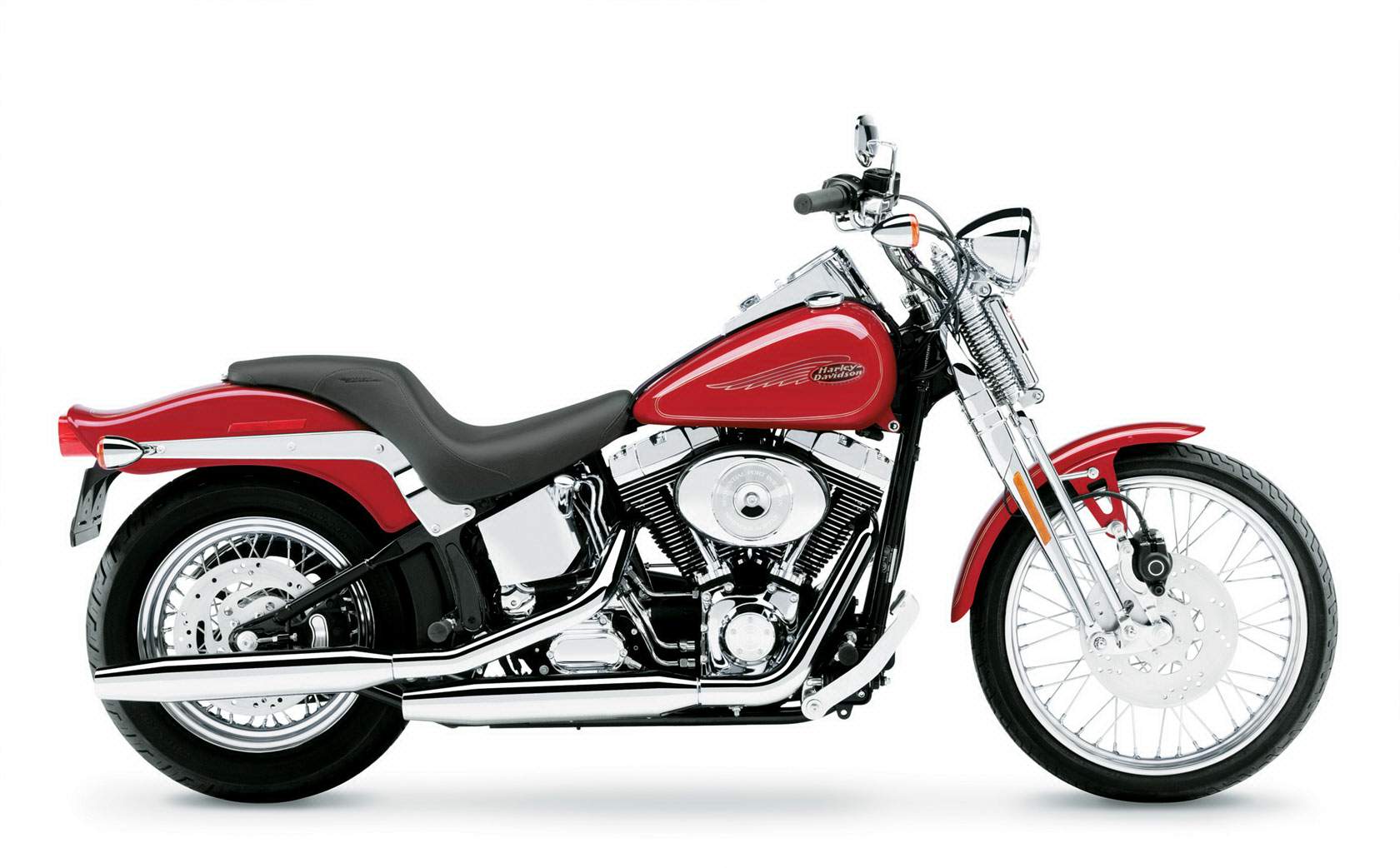

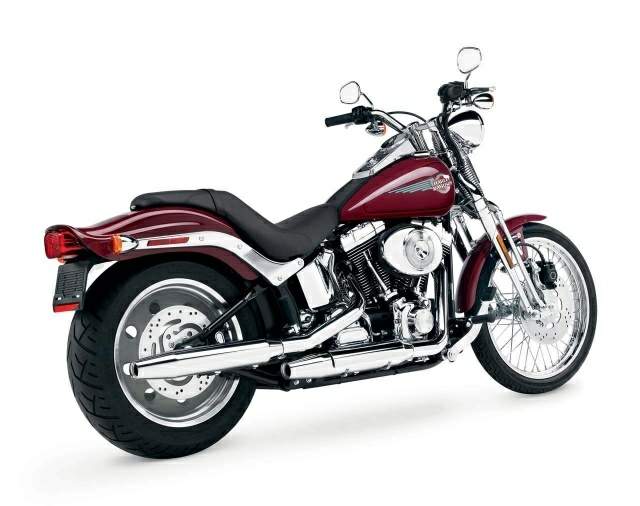

Harley Davidson FXSTS/I Softail Springer

.

Make Model

Harley Davidson FXSTS/I Softail Springer

Year

2003 - 04

Engine

Four stroke, 45° V-Twin, Twin Cam 88® vibration isolation-mounted Valves Pushrod-operated overhead valves; w/ hydraulic self-adjusting lifters; two valves per cylinder

Capacity

1449 cc / 88.4 cu-in
Bore x Stroke 95.3 x 101.6 mm
Cooling System Air cooled
Compression Ratio 8.9:1
Exhaust Staggered shorty duals
Lubrication Dry sump, internally mounted, crank driven gerotor pressure and dual scavenge pump with spin on 10ì pressurized oil filter

Induction

Carburetion 40 mm constant velocity with enrichener and accelerator pump
ESPFI 38 mm throttle bore electronic sequential port fuel injection

Ignition

Single-fire, non-wasted, map-controlled spark ignition
Starting Electric

Max Power

67 hp / 48.8 kW @ 5200 rpm

Max Torque

116.6 Nm / 86 lb-ft @ 3500rpm
Clutch  Wet 9-plate

Transmission

5 Speed
Final Drive Belt
Gear Ratio 1st 10.110
2nd 6.958
3rd 4.953
4th 3.862
5th 3.150
Frame Mild steel tubular frame; rectangular section backbone; stamped, cast and forged junctions, forged fender supports; MIG welded Swingarm Mild steel, rectangular tube sections, stamped junctions, MIG welded

Front Suspension

Chrome, leading-link, fork for Springer® model

Rear Suspension

Hidden,, horizontal-mounted, coil-over

Front Brakes

Single 292mm disc 2 piston caliper

Rear Brakes

Single 292mm disc 4 piston caliper

Front Tyre

MH90-21 54H

Rear Tyre

150/80B 16 71H
Rake 27.5°
Trail 134 mm / 5.3 in
Dimensions Length 2374.9 mm / 93.5 in
Wheelbase 1661 mm / 65.4 in
Seat Height Laden 655.3 mm / 25.8 in
Unladen 700.0 mm / 27.6 in
Ground Clearance 130 mm / 5.1 in

Dry Weight

298 kg / 656.0 lbs
Wet Weight 315 kg / 694.0 lbs

Fuel Capacity

18.9 Litres / 5.0 US gal

The Springer® Softail® model is best known for its front end, which carries on the strong tradition from historical Harley-Davidson models. The Springer is powered by the Twin Cam 88B™ engine and enhanced by a chrome bullet headlight, a new low rise handlebar and a 21-inch laced front wheel. The look captures the history of a classic motorcycle, while expressing a strong statement of individuality and attitude.

Rigid mount, 1450cc Twin Cam 88B™ balanced engine
Black powder-coated engine with chrome covers
Chrome Springer front forks
Laced wheels
Chrome tank console, rear fender supports, air cleaner, and oil tank
Low rise handlebar
Forward foot controls
Badlander seat
Available Options*

Electronic Fuel Injection
Security System

New in 2004

Long lasting tail light
Corrosion resistant spokes and spoke nipples
Lower effort clutch
Longer life brake pads
New powertrain seals
Chrome plated head bolts
New low rise handlebar
Badlander seat
Color Options

Vivid Black
Sierra Red
Impact Blue
Luxury Blue
Lava Red Sunglo
Two-Tone Impact Blue and Vivid Black
Two-Tone Luxury Teal and Brilliant Silver
