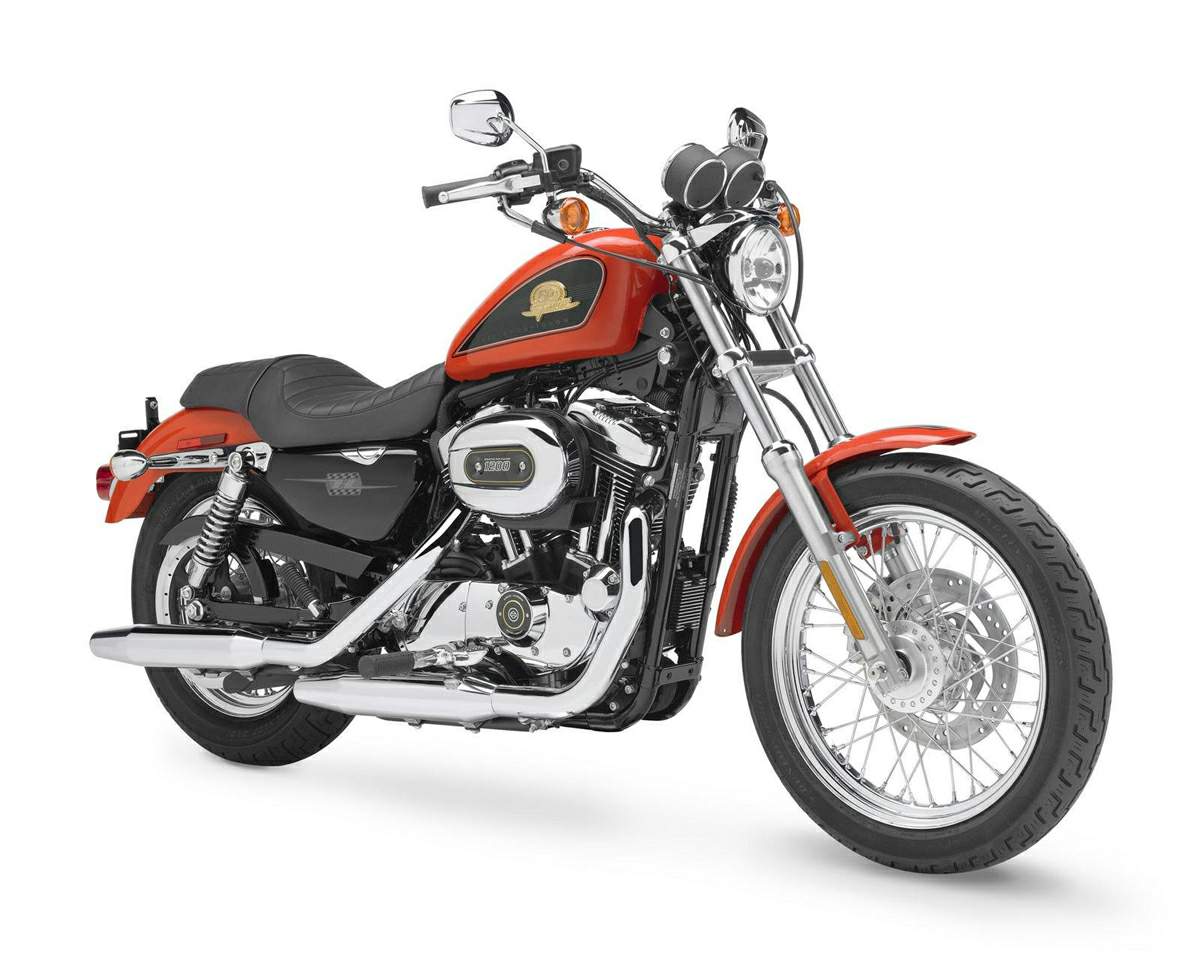

Harley Davidson XL 50 50th Anniversary Sportster Limited Edition

.

Make Model

Harley Davidson XL 50 50th Anniversary Sportster Limited Edition

Year

2007

Engine

Air cooled, four stroke, 45° V-Twin, OHV, 2 valves per cylinder.

Capacity

1199
Bore x Stroke 88.8 x 96.8 mm
Compression Ratio 9.7:1

Induction

Electronic Sequential Port Fuel Injection (ESPFI)

Ignition  /  Starting

-  /  electric

Max Power



Max Torque

107.3 Nm 79.1 ft. lbs @ 4000 rpm

Transmission  /  Drive

5 Speed  /  Belt
Frame Mild steel tubular frame; circular sections; cast junctions

Front Suspension

39 mm forks

Rear Suspension

Coil-over; preload dual-adjustable

Front Brakes

Single 292mm disc 2 piston calipers

Rear Brakes

Single 292mm disc1 piston caliper

Front Tyre

100/90-19

Rear Tyre

150/80B16

Dry Weight

253 kg

Fuel Capacity

12.5 Litres

Marking the evolution of a hot rod, the 50th Anniversary Sportster honors the family heritage with a special 1200cc model sure to stun on the street. With the new standard Electronic Sequential Port Fuel Injection (ESPFI) system, new gauges and handlebar wiring, the 50th Anniversary Sportster stands out in the tradition of previous commemorative Harley-Davidson models. Special features include gold "50th" tank emblem, serialized bar clamp nameplate with "50th" logo, "H" logo silk screening on side cover and embroidered seat marking 50 years of production. Paying tribute to a legend, the Anniversary Sportster is offered in two appropriate commemorative colors, Mirage Orange and Vivid Black. Production will be limited to 2,000 motorcycles.

• Rubber-mounted XL Evolution 1200cc engine
• Black powder-coated engine with chrome treatment
• Standard Electronic Sequential Port Fuel Injection (ESPFI)
• Chrome Steel Laced 19-inch front wheel
• Serialized name plate with "50th" logo on top handle bar clamp
• New fender striping
• New gold "50th" emblem on 3.3-gallon peanut fuel tank
• New "H" side cover silk screening
• Embroidered seat noting 50 years of production
• New lighter clutch effort
• New sidestand design
• New gauges with odometer clock, low fuel warning light and two trip set odometers
• Single disc front brake
• Chrome headlamp bucket and eyebrow
• Lowered rear shocks
