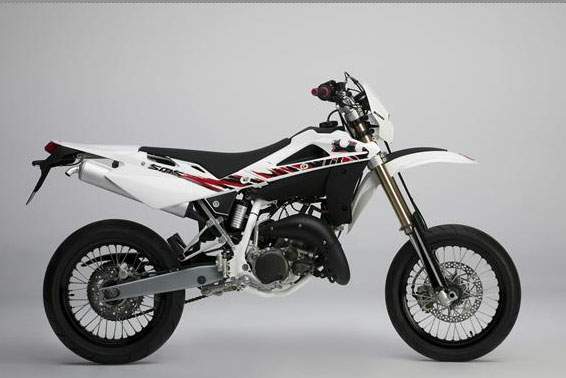

Husqvarna SM 125S







Make Model

Husqvarna SM 125

Year

2010 - 11

Engine

Two stroke, single cylinder

Capacity

124.8 / 7.6 cu-in
Bore x Stroke 54 x 54.5 mm
Cooling System Liquid coked
Compression Ratio 8.8:1

Induction

Dell'Orto PHBH 28

Ignition

Digital CDI
Starting Kick

Max Power

15 hp / 10 kW @ 9500 RPM
Clutch Wet multiplate type, mechanic control

Transmission

6 Speed
Final Drive Chain

Front Suspension

40mm Paioli Upside down forks
Front Wheel Travel 260 mm / 10.2 in

Rear Suspension

Paioli progressive Softail hydraulic shock
Rear Wheel Travel 220 mm / 8.7 in

Front Brakes

Single 260mm disc

Rear Brakes

Single 220mm disc

Front Tyre

120/70 -17

Rear Tyre

150/60 -17
Wheelbase 1470 mm / 57.9 in
Seat Height 870 mm / 34.3 in
Ground Clearance 265 mm / 10.4 in

Dry Weight

113.5 kg / 250.2  lbs

Fuel Capacity

9.5 Litres / 2.5 US gal

The SM 125 has become an icon for sixteen-year-olds, a sales phenomenon and a new fashion. It is the starting point for those who want to experience the thrills of off-roading but who also want a bike that is perfectly suited to everyday use. Easy to ride, light and manoeuvrable, the 2009 version of the SM 125 has everything it takes to become leader in its class.

The SM 125 is available in either red and white colour scheme or the more sophisticated black version. The white frame and black anodised wheels make the two-stroke look more like the bigger four-stroke version. The highly successful 125 engine has seen improvements “borrowed” from racing models and has been tuned to improve pick-up and offer more output in the low to mid range power band.

The SM 125 features integrated ECS (Electronic Carburetion System) that administers exactly the right amount of fuel (both the air/petrol and oil mix) and that was developed in collaboration with Dell’Orto. The control unit also governs the ignition system. While keeping costs under control and sales prices competitive, this brings the two-stroke 125 engine to Euro 3 standards yet keeps all the advantages that two-stroke engines offer: lightness, performance and low running costs.

As regards suspension, the SM 125 now has specially designed PaioIi forks to enhance the performance characteristics of the model and to compliment the shock absorber.

The new digital instrumentation displays speed, time, mileage, rpm and has a trip-meter as well as the normal warning lights (indicators, full beam, dipped beam, service due etc.).
