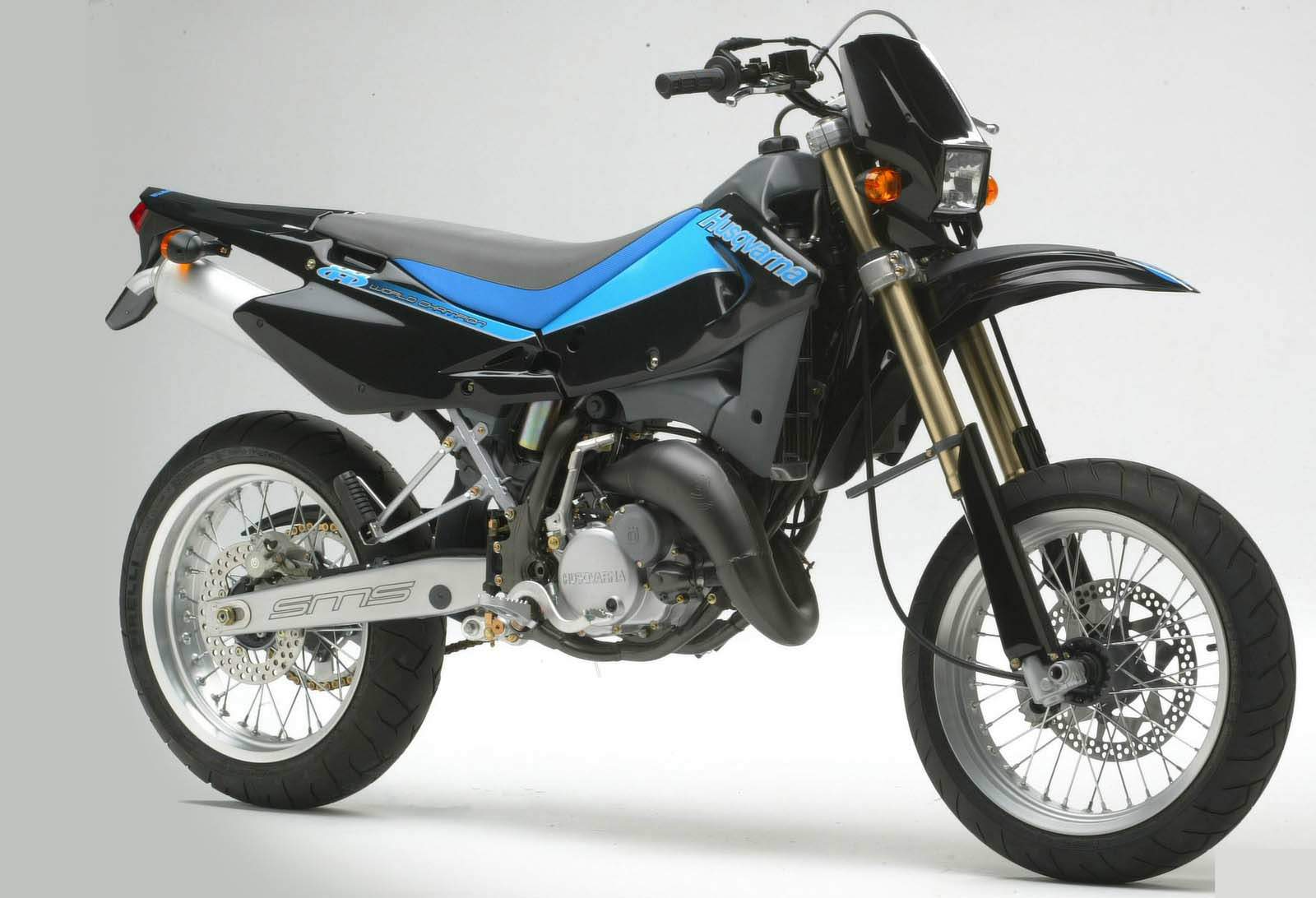

Husqvarna SM 125S







Make Model

Husqvarna SM 125S

Year

2004 -

Engine

Two stroke, single cylinder

Capacity

124.8 / 7.6 cu-in
Bore x Stroke 54 x 54.5 mm
Cooling System Liquid coked
Compression Ratio 8.8:1

Induction

Dell'Orto PHBH 28

Ignition

Digital CDI
Starting Kick

Max Power

15 hp / 10 kW @ 9500 RPM
Clutch Wet multiplate type, mechanic control

Transmission

6 Speed
Final Drive Chain

Front Suspension

40mm Paioli Upside down forks
Front Wheel Travel 260 mm / 10.2 in

Rear Suspension

Paioli progressive Softail hydraulic shock
Rear Wheel Travel 220 mm / 8.7 in

Front Brakes

Single 260mm disc

Rear Brakes

Single 220mm disc

Front Tyre

120/70 -17

Rear Tyre

150/60 -17
Wheelbase 1470 mm / 57.9 in
Seat Height 870 mm / 34.3 in
Ground Clearance 265 mm / 10.4 in

Dry Weight

113.5 kg / 250.2  lbs

Fuel Capacity

9.5 Litres / 2.5 US gal
