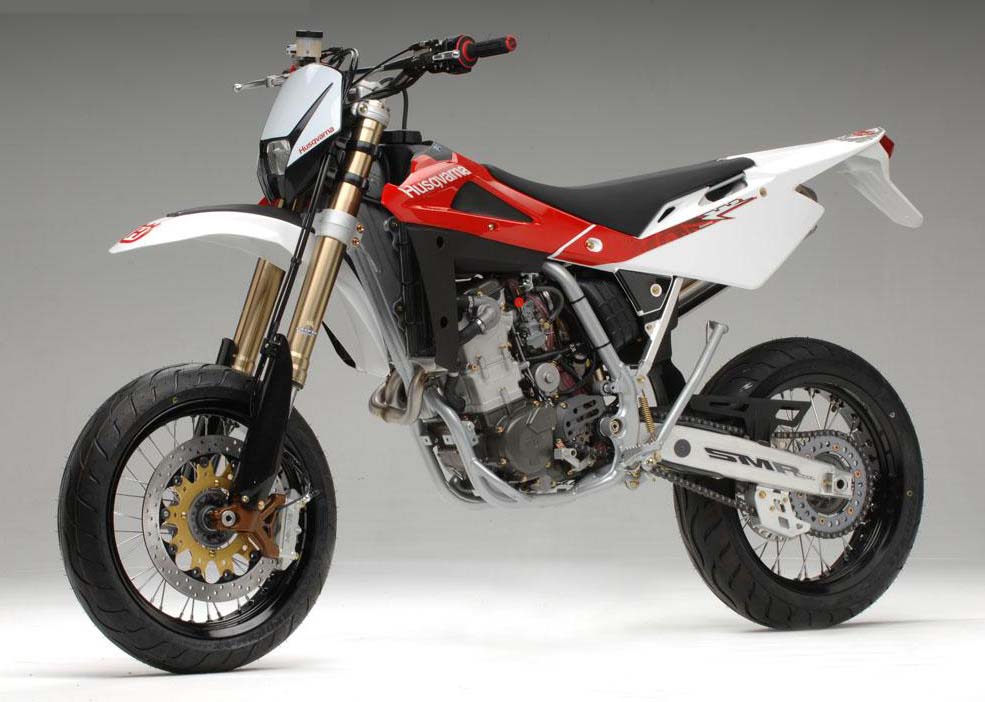

Husqvarna SM 400R







Make Model

Husqvarna SM 400R

Year

2002 - 03

Engine

Four stroke, single cylinder, DOHC, 4 vlave

Capacity

399 cc / 24.3 cu-in
Bore x Stroke 91.5 x 60.8 mm
Cooling System Liquid cooled
Compression Ratio 11.4:1

Induction

Carburettor

Ignition

Digital CDI
Starting Electric & kick

Max Power

34 hp / 24.8  kW @ 7000 rpm

Max Torque

40.6 Nm / 30 lb-ft @ 5150 rpm

Transmission

6 Speed
Final Drive Chain
Frame

Steel single tube cradle (round tubes); rear frame in light alloy

Front Suspension

Marzocchi "Upside-Down" telescopic hydraulic fork with advanced axle. compression and rebound stroke adjustment

Rear Suspension

Sachs progressive "Soft Damp" type with single hydraulic shock absorber, spring preload adjustment, compression and rebound adjustment

Front Brakes

Single 320mm disc

Rear Brakes

Single 220mm disc

Front Tyre

120/70 -17

Rear Tyre

150/60 -17
Wheelbase 1460 mm / 57.5 in
Seat Height 850 mm / 33.5 in
Ground Clearance 325 mm / 12.8 in

Dry Weight

117 kg / 259 lbs

Fuel Capacity

8 Litres / 2.1 US gal
