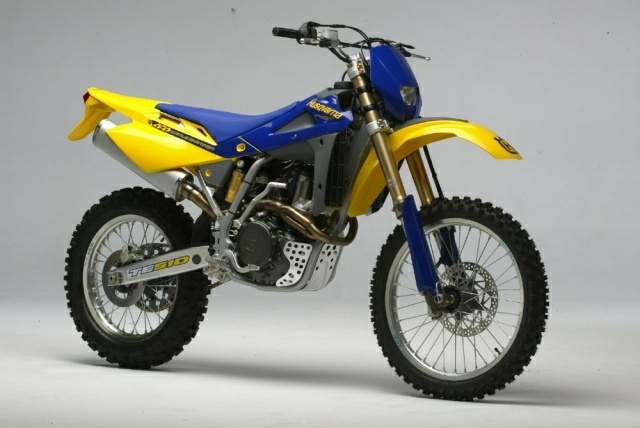

Husqvarna TE 510







Make Model

Husqvarna TE 510

Year

2006 - 07

Engine

Four stroke, single cylinder, DOHC, 4 valves

Capacity

501 cc / 30.5 cu-in
Bore x Stroke 97 x 67.8 mm
Cooling System Liquid cooled
Compression Ratio 12.5;1

Induction

41mm Keihin MX carburetor

Ignition

CDI
Battery 12 V - 6 Ah
Starting Electric & kick

Max Power

59.8 hp / 44 kW @ 8000 rpm

Max Torque

49 Nm / 56 lb-ft @ 6400 rpm
Clutch Wet / Multiplate / 6 spd

Transmission

6 Speed
Final Drive Chain
Gear Ratio 1st 2.000 (28/14), 2nd 1.611 (29/18), 3rd 1.333 (24/18), 4th 1.086 (25/23), 5th 0.920 (23/25), 6th 0.814 (22/27)
Frame

Steel single tube cradle (round tubes); rear frame in light alloy

Front Suspension

Marzocchi "Upside-Down" telescopic hydraulic fork with advanced axle; compression and rebound stroke adjustment

Front Wheel Travel 300 mm / 11.8 in

Rear Suspension

Sachs progressive "Soft Damp" type with single hydraulic shock absorber; spring preload adjustment, compression and rebound adjustment
Rear Wheel Travel 320 mm / 12.6 in

Front Brakes

Single 260mm disc

Rear Brakes

Single 220mm disc

Front Tyre

90/90-21

Rear Tyre

140/80-18
Wheelbase 1460 mm / 57.5 in
Seat Height 975 mm / 38.4 in
Ground Clearance 340 mm / 13.4 in

Dry Weight

117 kg / 258 lbs

Fuel Capacity

9.2 Litres / 2.4 US gal
