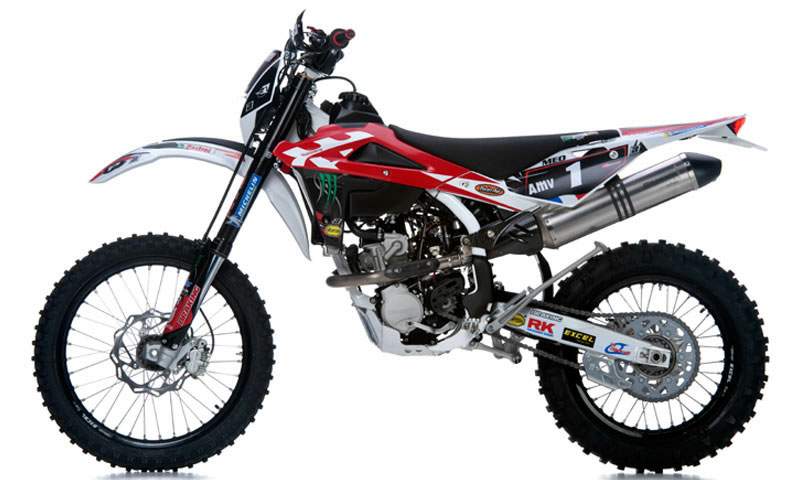

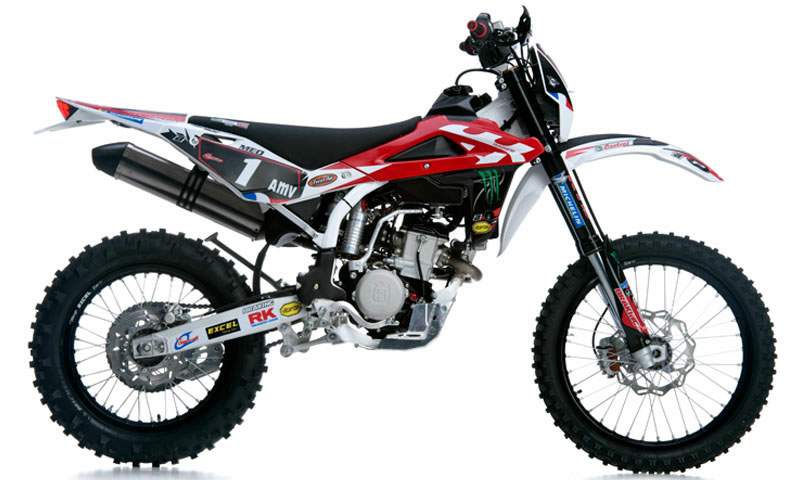

Husqvarna TE 250 Meo Replica







Make Model

Husqvarna TE 250 Meo Replica

Year

2012

Engine

Four stroke, single cylinder, DOHC, 4 valves

Capacity

249 cc / 15.2 cu-in
Bore x Stroke 76 x 55 mm
Cooling System Liquid cooled
Compression Ratio 12.9:1

Induction

Electronic Fuel Injection

Ignition

Electronic

Starting Electric & kick

Max Power

Max Torque

Clutch Wet / Multiplate

Transmission

6 Speed
Final Drive Chain
Gear Ratio 1st: 28,205  2nd: 22,721  3rd: 18,803  4th: 15,329  5th: 12,974  6th: 11,491
Frame

Steel single tube cradle (round tubes); rear frame in light alloy

Front Suspension

Marzocchi USD telescopic hydraulic fork with advanced axle compression and rebound stroke adjustment  Fork leg diameter 50 mm fork

Front Wheel Travel 300 mm / 11.8 in

Rear Suspension

Sachs  Progressive Soft Damp type with single hydraulic shock absorber, spring pre-load adjustment. Compression and rebound adjustment (compression stroke - double adjustment)
Rear Wheel Travel 290 mm / 11.4 in

Front Brakes

Single 260mm disc

Rear Brakes

Single 220mm disc

Front Tyre

90/90-21

Rear Tyre

120/80-18
Dimensions Length 2267 mm / 89.2 in
Width  820 mm / 32.2 in
Height 1285 mm / 50.5 in
Wheelbase  1485 mm / 58.5 in
Seat Height 963 mm / 38.0 in
Ground Clearance 300 mm / 11.8 in

Dry Weight

108 kg / 238.1 lbs

Fuel Capacity

7.2 Litres / 1.9 US gal

The Husqvarna TE 250 has won the world title in the Enduro class E1, with Antoine Meo in the saddle. The championship was dominated by the Frenchman, who won eight out of the 16 day trials. The TE 250 Meo Replica adopts all the technical modifications that have been tried, tested and awarded laurels during the championship season. A racing bike available only in a limited edition of 100, for an exclusive group of connoisseurs and collectors.

The look features all the "race replica" graphic design used by Meo - on front and rear mudguards, front fork, swing arm, reg. plate holder and radiator guards.

The exhaust system has been designed by LeoVince, in collaboration with the CH racing team. It is entirely made of titanium with muffler skid plate and carbon fibre heat shield protector. In terms of mechanics, the Kayaba forks with close cartridge, (same forks as MX Husqvarna models) are mounted in machined-from-solid triple clamps with adjustable offset. The aluminium footrests are also machined-from-solid, and wider, allowing greater support surface for the foot.

The engine and chassis undercarriage are protected by a sturdy aluminium sump guard, particularly useful in extreme Enduro events.
The bike has numerous special features, such as the aluminium oil filler with O-ring, fuel tank cap made of ergal, Selle Dalla Valle saddle with non-slide upholstery, and hand guards.

 Husqvarna TE250 Meo Replica Features and Benefits

The perfect reproduction of the victorious bike ridden by Antoine Meo. Only 100 units available.

To ride the legend “Antoine Meo” Racing Stickers Kit
Leo Vince Titanium Exhaust System with Carbon Heat protection and carbon end cap
Front Forks with Twin Chamber Closed Cartridge
Cnc Triple clamps
Cnc foot steps with wider section
Aluminium skid plate
Aluminium fuel tank cap
Aluminium engine oil cap
Dalla Valle seat with non-slide cover
Handle bar protection
