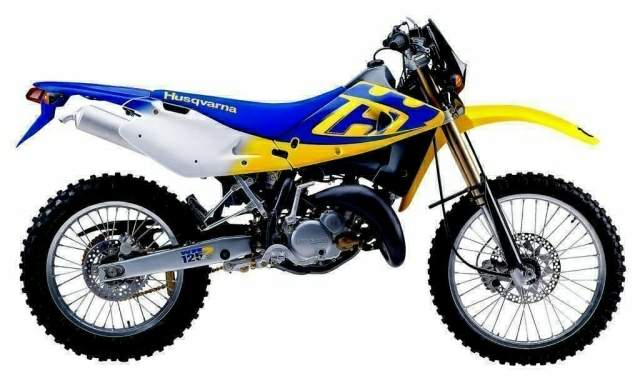

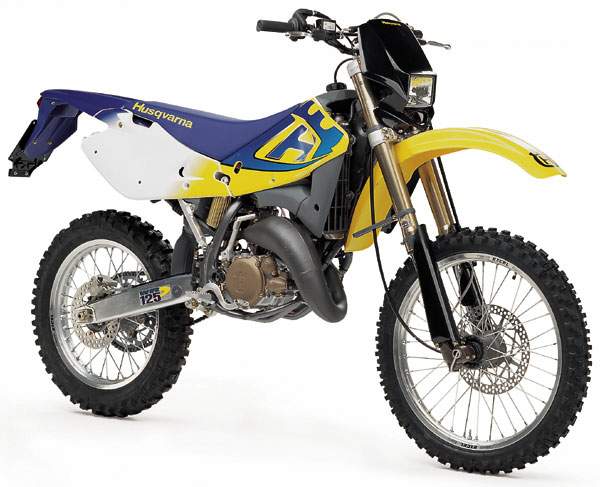

Husqvarna WRE 125







Make Model

Husqvarna WRE 125

Year

2001 - 03

Engine

Two stroke, single cylinder, reed valve

Capacity

124 cc / 7.6 cu-in
Bore x Stroke 54 x 54.5 mm
Cooling System Liquid cooled
Compression Ratio 8.8:1

Induction

Dell'Orto PHBH 28 BS carburetor

Ignition

C.D.I. electronic, with adjustable advance (digital control)
Starting Kick

Max Power

15 hp / 11.2 kW @ 10500 rpm
Clutch By the oil contained in the crankcase

Transmission

6 Speed
Final Drive Chain
Gear Ratio 1st 2.692 (35/13), 2nd 1.800 (27/15), 3rd 1.333 (24/18), 4th 1.100 (22/20), 5th 0.954 (21/22), 6th 0.869 (20/23)
Frame Double tube cradle with steel round tubes; rear frame with steel square tubes

Front Suspension

40mm Marzocchi Upside-Down telescopic hydraulic fork with advanced axle

Rear Suspension

Progressive "Soft Damp" type with single hydraulic shock absorber; spring preload adjustment

Front Brakes

Single 260mm disc 4 piston calipers

Rear Brakes

Single 220mm disc 2 piston calipers

Front Tyre

90/90-21

Rear Tyre

120/80-18
Wheelbase 1500 mm / 59.1 in
Seat Height 880 mm / 34.6 in
Ground Clearance 325 mm / 12.8 in

Dry Weight

111.1 kg  /  244.9 lbs

Fuel Capacity

11.2 Litres / 2.9 US gal
