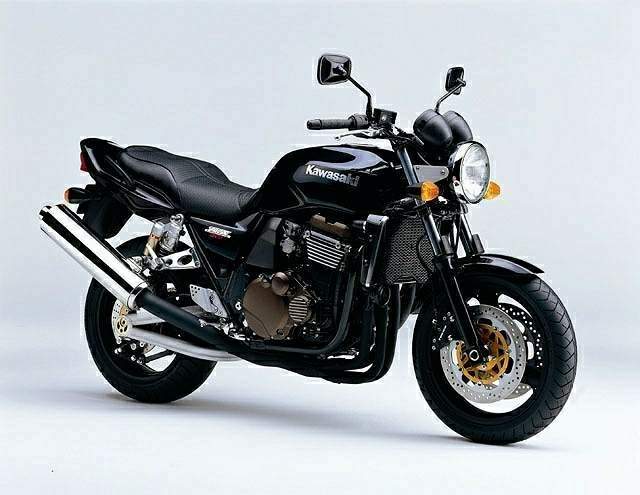

Kawasaki ZRX 1200

.

Make Model

Kawasaki ZRX 1200

Year

2004 - 05

Engine

Four stroke, transverse four cylinder, DOHC, 4 valves per cylinder.

Capacity

1165 cc / 71.0 cu-in
Bore x Stroke 79 x 59.4 mm.
Cooling System Liquid cooled
Compression Ratio 10.1:1

Induction

4x Keihin CVK36  carburetors

Ignition

Digital with K-TRICK
Starting Electric

Max Power

122 hp / 88.9 kW @ 8500 rpm

Max Torque

112 Nm / 82.6 lb-ft @ 7000 rpm

Transmission

5 Speed
Final Drive Chain

Front Suspension

43 mm fully adjustable, conventional cartridge-type fork, offers 12-way compression and rebound damping adjustment as well as fork spring preload

Rear Suspension

Fully adjustable rear shock

Front Brakes

2x 310mm discs 6 piston calipers

Rear Brakes

Single 250mm disc  2 piston caliper

Front Tyre

120/70 ZR17

Rear Tyre

180/55 ZR17
Wheelbase 1465 mm / 57.7 in
Seat Height 790 mm / 31.1 in

Dry Weight

220 kg / 489 lbs

Fuel Capacity

19 Litres / 5.0 US gal

The Kawasaki ZRX1200R, a standard/naked motorcycle, was manufactured in Japan from 2001 until 2008. It is an evolution of the ZRX 1100, a stylized replica of the "Eddie Lawson Replica", a motorcycle made famous by the superbike racing champion of the same name.[1] With the ZRX1200R, Kawasaki's goal was to produce a motorcycle with the performance of a modern motorcycle, while retaining a design similar to the original Eddie Lawson Replica.

Worldwide, the ZRX 1200 was available in three guises: the ZRX1200S, which was partially faired; the ZRX1200R, which had a bikini fairing; and the ZRX1200N, which had no fairing. Unlike sport bikes, full handlebars made of tubular aluminum are utilized. For comfort, the saddle contains more than one centimeter of padding between the seat covering and the pan. Foot pegs are positioned similar to standard motorcycles, creating a seating position reminiscent of the classic Universal Japanese Motorcycle (UJM).

The frame is conventional steel tube with the engine supported in a removable cradle. The suspension configuration is similar to that found on a UJM. The lay-down rear shocks, designed with a built-in remote reservoir, are adjustable for preload and damping. The front suspension consists of conventional forks with adjustable damping and preload. The reinforced swing arm was designed to mimic the modified/aftermarket swingarms produced in the 1970s.

The bike features a liquid-cooled 1164cc inline 4-cylinder engine. Induction comes through four 36mm Keihin Constant Velocity carburetors. The exhaust system is a 4-into-1 stainless steel unit. The exhaust system on models produced up to 2004 are painted black, with the exception of the muffler, models produced from 2004-onwards are equipped with polished exhaust systems.

When I was a wee lad and cutting my teeth on two wheels, Kawasaki Z1s ruled the roost. They were big, they were mean and they dominated Production racing in Oz - right from their launch on to the local scene in 1973. And I wanted one.

However, it was 1976 before I had the readies to buy a hotted secondhand Zed, and then 1979 before my piggybank had swelled enough to throw my leg over a brand new one (a Z1000 MkII). Truth be known, I should have waited another couple of years...

Why? Because in 1981 American Eddie Lawson won the US Superbike Championship on a KZ1000J (known in Australia as the Z1000J), and that inspired Kawasaki to come out with a roadbike version for 1982, based on Eddie's winning steed. Well, cosmetically at least.

The Eddie Lawson Replica roadbike was in essence an optioned-up KZ1000J, with lime-green paintwork. Only 750 ridgey-didge '82 Lawson replica roadbikes were ever produced, and these days they fetch big bucks.

The model finally made it Down Under in 1983, but by then my piggybank was empty again.

EDDIE OVERTONES
So what's this got to do with the latest ZRX1200R that I found myself aboard, en route to the recent Kawasaki Z1000 launch in Queensland? Probably a lot more than you suspect.

Not only is there the braced aluminium swingarm, the cutdown seat and the four-into-one pipe reminiscent of Eddie's steed. But the 2003 ZRX-R now comes in a similar colour to a genuine ELR, albeit metallic rather than the in-you-face lime green of Kawasaki's racebikes.

It's a point I commented on back in AMCN's 2001 Dumb & Dumber yarn (Vol 51 No 3) when the ZRX1200S was on test - how could Kawasaki sell the R model without a lime green version in the range. Well, that's been addressed for 2003.

When it was released a few years back the ZRX1100 (tested in Vol 48 No 21) was not just another nakedbike, as Kawasaki's own Zephyr 1100 (1992-94) could be categorised as. The ZRX was a bike which evoked emotion and passion among those who cut their two-wheeled teeth in the early '80s. However, the only throwback to the '80s are the dual rear shocks, but in this case fully-adjustable KYB units. Fully-adjustable 43mm-diam cartridge forks take care of things up front.

ZZ-R ROOTS
Everything else is current technology. The ZRX-R powerplant is based on the GPZ1100 sportstourer mill, which was in turn derived from the famed ZZ-R1100 powerplant.

Two years after its launch, the ZRX model was split into two in 2001 - the half-faired 1200S model (as tested in Vol 51 No 3) and the more 'Lawson-esque' bikini-clad R version. The main mechanical change since the ZRX1100 launch has been a capacity increase to 1164cc (from 1052cc).

Like the engine, the R's chassis is very much 2003 in its spec - well, at least for a big, brawny nakedbike. A rake of 25 degrees is not far off most sportsbikes, and some two degrees quicker than the original Lawson replica of 1982.

Since its 1999 launch in 1100 guise the latest R has undergone a number of refinements, such as a stiffened aluminium swingarm, the Tokico calipers have scored new pad material that's not as 'grabby', and fork offset has been reduced - trail is now 106mm as against 104mm on the 1100.

The 'S' version differs from the 'R' via its dual headlight with the half-cowl fairing, as well as new mirrors and instruments. The 'S' also features slightly heavier spring rates over the 'R' to cope with its slightly heavier kerb weight (4kg).

The 1200's suspension damping settings are also revised over the 1100, and the wheelbase increased by 12mm to 1465mm, courtesy of a smaller rear sprocket to raise the final gearing on the gruntier 12 compared to the 11.

The ZRX1200R also gets a re-padded seat over the 11, together with a wider rear rim, up half an inch to 5.50.

BIG AND GRUNTY
As I found on my 240km run southwards along the coast road from Brisbane, then a 320km return route through the hinterland via Mount Tamborine, comfortable highway and backroads travel is the domain of the ZRX. The extra bulk of the big kWaka (compared to its ZX-9R-based Z1000 stablemate) isn't noticeable when straightlining, although it's more of a handful through the tight stuff.

The torquey ZRX powerplant makes overtaking a simple twist-and-forget affair - from 5500rpm to just over 8000rpm it holds a healthy advantage over most other Nakeds in both power and torque.

It's only from 8200rpm onwards that bikes like Yamaha's FZ1 or Kawasaki's Z1000 develop more rear-wheel ponies than the ZRX, but by then the kWaka is sitting on close to an indicated 240km/h in top (fifth) gear. Don't ask me how I know...

The ZRX spins at 3400rpm at 100km/h, making for relaxed open road sportstouring. And that's the key - the ZRX1200R/S is not a sportsbike without a fairing (as the Z1000 most certainly is) - it's a sportstourer par excellence. I ncidentally, that engine speed equates to a healthy 9.42kgf-m when you want that instant roll-on acceleration to overtake a long line of traffic.

MUZZLED BITE
Speaking of instant, the ZRX1200R anchors are nowhere near as 'instant' as those on the ZRX1100 testbike of a few of years back. A change of pad material has taken away that initial bite, which necessitates a stronger pull on the lever, albeit with a more woody (© Iain Aitken) feel.

A few brain-out laps of Mount Cotton's Driver Training Centre south of Brisbane soon confirmed my on-road findings of the ZRX-R - the R felt like a 'supertanker' compared to the Z1000 I'd been punting earlier. Big and stable in comparison to the $15,490 Z1000, the R felt heavy in both steering and change of direction. However, given that a ZRX won the Formula Xtreme Nakedbike category in 2000 and 2001, that says more about the Z1000's nimble sportsbike performance around a twisty circuit rather than any undue criticism of the ZRX.

It also says a bit about the current direction of the Nakedbike category, and where the ZRX-R now sits in comparison - an initial sports Naked that has now become a great sportstourer Naked.

The ZRX-R has a high quality of finish, compliant suspension, great luggage capacity (plenty of attachment points), and luxurious loungechair comfort compared to many Nakeds - even that bikini fairing does a commendable job of keeping buffeting to an acceptable level. I even got over 19km/lt during one stint of highway travel, although my average was closer to 16km/lt. Pity the R hasn't got a clock though.

What it has got though is that stonking powerplant. Plus the ZRX has a 'heritage' other Nakeds lack. At $14,990 the R is $1000 cheaper than its S cousin, $809 cheaper than Yamaha's FZ1, but $2000 dearer than Suzuki's Bandit 1200.

Personally, I reckon it's the best looker of the lot. And now that it's in Eddie's colours for 2003, it's even better.

Source: BikePoint
