KTM 125 Sting







Make Model.

KTM 125 Sting

Year

1997 - 99

Engine

Single cylinder two stroke

Capacity

124.8 cc / 7.6 cu in
Bore x Stroke 56 x 50.7 mm
Compression Ratio
Cooling System Liquid cooled

Starting

Electric

Max Power

10.1 kW / 13.5 hp @ 8400 rpm

Max Torque

13.1 Nm / 1.34 kgf-m / 9.7 ft-lb @ 7500 rpm

Transmission

6 Speed

Final Drive

Chain

Front Suspension

43mm Upside down forks and shock

Front Wheel Travel

180 mm / 7.1 in

Rear Suspension

Fully adjustable White Power mono-shock

Rear Wheel Travel

220 mm / 8.7 in

Front Brakes

Single 320 mm disc

Rear Brakes

Single 220 mm disc

Front Tyre

110/70-17

Rear Tyre

130/70-17

Dry Weight

124 kg / 273 lbs

Fuel Capacity

8.5 L / 2.2 US gal / 1.9 Imp gal

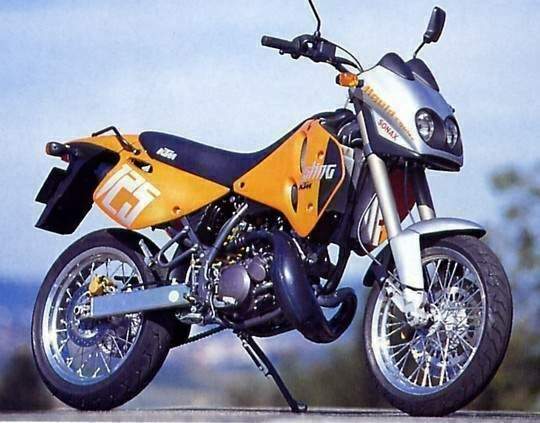

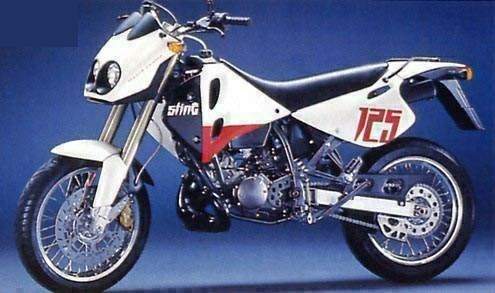

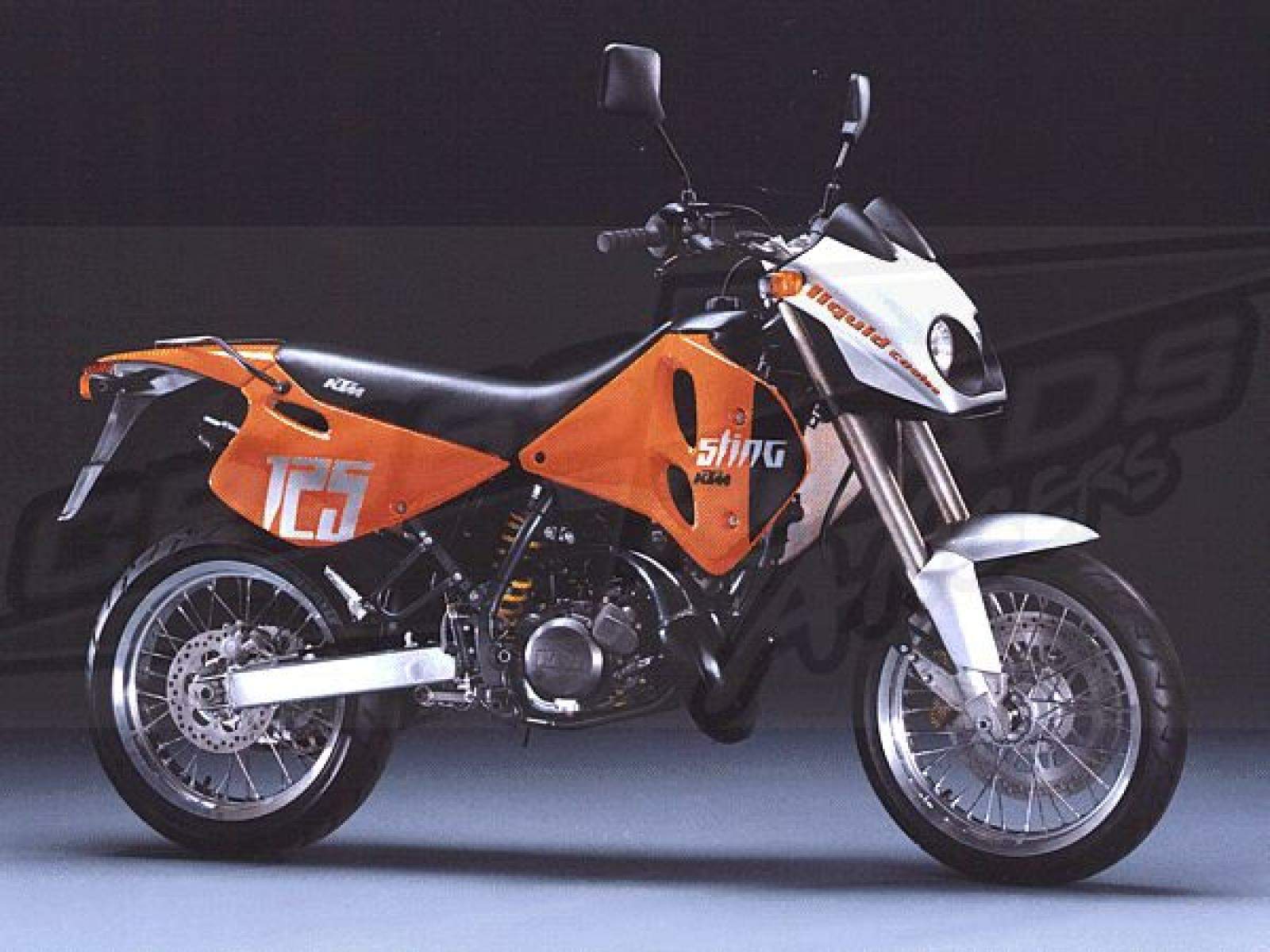

The Sting is a 125cc supermotard styled machine.

Eligible for European learners to ride in restricted form, it can be de-restricted to produce more power than the standard 10kW (14bhp). A liquid-cooled single-cylinder two-stroke design, it uses reed valve induction and has a large expansion chamber exhaust to improve power delivery.

The styling is borrowed from the firm's successful Duke supermotard, including the large, aggressive twin headlight nosecone. Massively stiff upside-down forks look like they're straight off a full works race machine, and a huge 320mm (12.6in) front brake disc with four-piston caliper gives superb stopping power. The Sting is fitted with 43cm (17in) spoked wheels with sticky sportsbike rubber.
