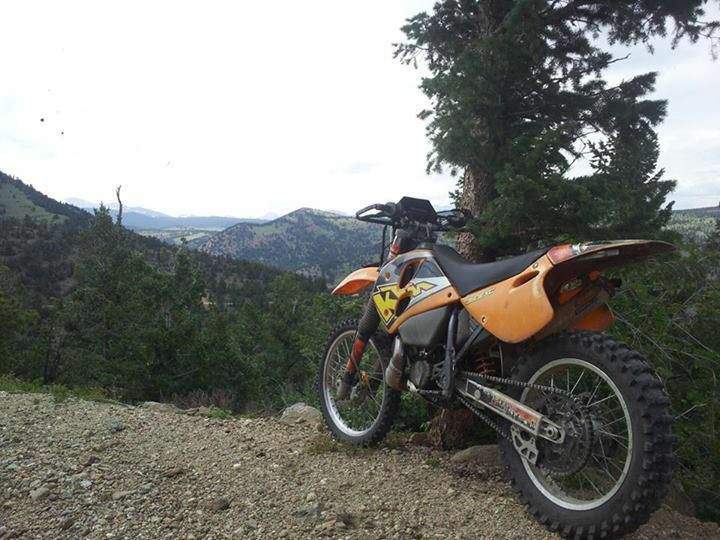

KTM 360 EXC

.

Make Model

KTM 360 EXC

Year

1995 - 96

Engine

Two stroke, single cylinder

Capacity

353.7 cc / 21.6 cu in
Bore x Stroke 78 x 74 mm
Cooling System Liquid cooled
Fuel 1:50 - 1.60 when using high grade two stroke oil

Ignition

KOKUSAN 2K-2

Starting

Kick
Spark Plug NGK BR 8 ECM, Electrode gap 0.6 mm (0.024 in)

Clutch

Wet, multiplate

Transmission

5 Speed

Final Drive

Chain
Primary Drive Ratio 25:72
Gear Ratio 1st 15:29 1 / 2nd 18:26 / 3rd 19:22 / 4th 21:20 / 5th 23:18
Final Drive Ratio 14:52

Front Suspension

43mm Upside down forks and shock

Front Wheel Travel

125 mm / 4.9 in

Rear Suspension

Fully adjustable White Power

Rear Wheel Travel

240 mm / 9.4 in

Front Brakes

Single disc

Rear Brakes

Single disc

Front Tyre

90/90 - 21

Rear Tyre

140/80 - 18

Dry Weight

113 kg / 249 lbs

Fuel Capacity

9 L / 2.4 US gal / 1.9 Imp gal
