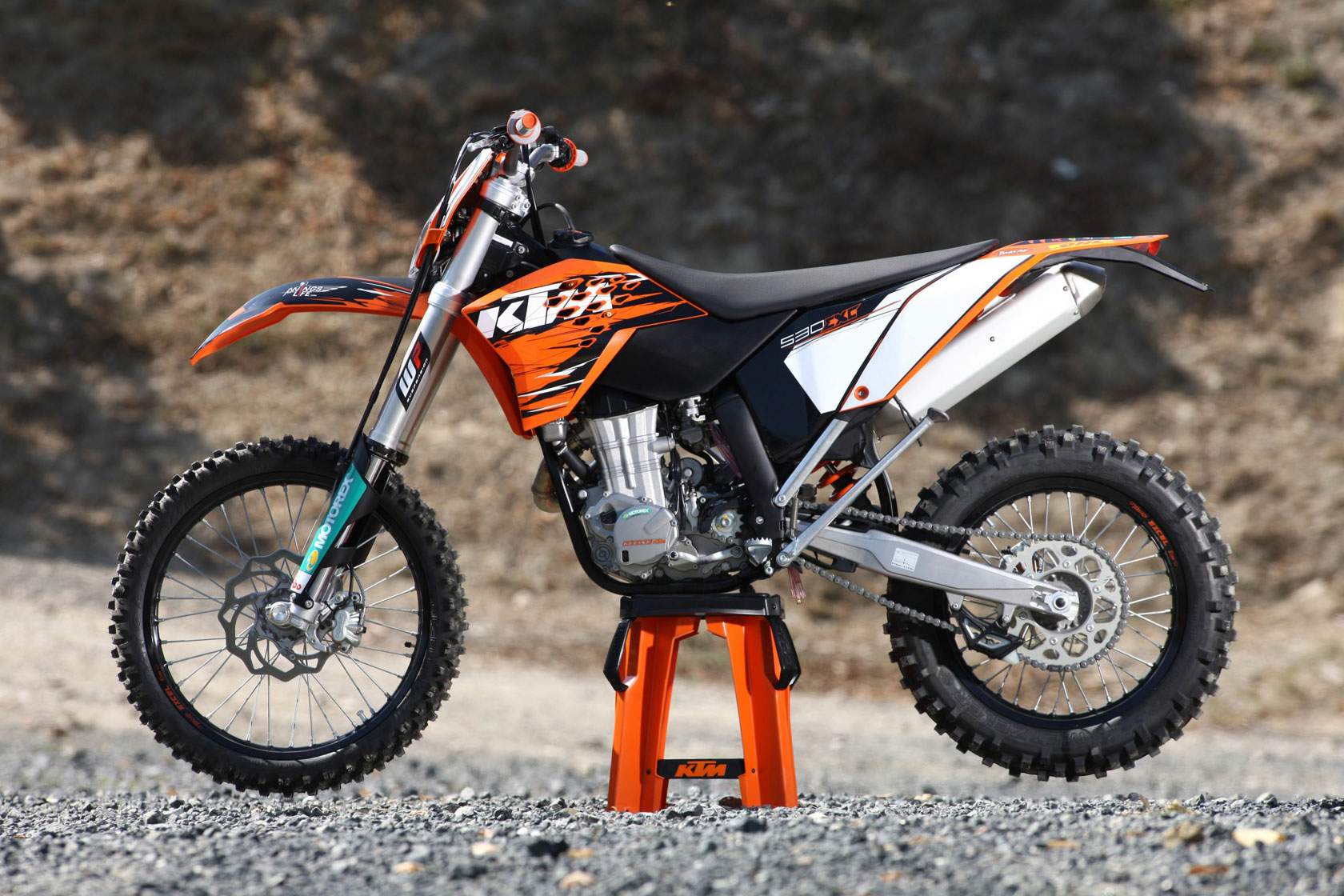

KTM 530 EXC Limited Champions Edition







Make Model.

KTM 530 EXC Limited Champions Edition

Year

2009

Engine

Four stroke, single cylinder, SOHC, 4 valves per cylinder

Capacity

510.4 cc / 31.1 in
Bore x Stroke 95 x 72 mm
Coompression Ratio 11.9:1
Cooling System Liquid cooled

Lubrication

Pressure circulation lubrication with two rotor pumps

Induction

Keihin MX FCR 3900J

Spark Plug

NGK LKAR 8AI - 9

Ignition

CDI Kokusan 4K-3

Battery

YTX5L-BS 12V 4Ah, maintenance free

Starting

Electric & kick

Clutch

Wet, multi-disc

Transmission

6 Speed

Primary Drive Ratio

33:76

Gear Ratios

1st 14:34 / 2nd 17:31 / 3rd 19:28 / 4th 22:26 / 5th 24:23 / 6th 26:21

Final Drive Ratio

15:45

Final Drive

Chain, 5/8 x 1/4"

Frame

Central tube chrome-moly-steel frame

Front Suspension

WP 4860 MXMA PA usd fork

Front Wheel Travel

300 mm / 11.8 in

Rear Suspension

WP Suspension PDS 5018 DCC, aluminium swing arm

Rear Wheel Travel

335 mm / 13.2 in

Front Brakes

Single 260 mm disc, floating caliper

Rear Brakes

Single 220 mm disc, floating caliper

Front Tyre

90/90 - 21 M/C 54M M+S TT, Metzeler MCE 6 Days Extreme

Rear Tyre

140/80 - 18 M/C 70M M+S TT, Metzeler MCE 6 Days Extreme
Steering Head Angle 63.5°
Wheelbase 1475 mm / 58.1 in
Ground Clearance 380 mm / 15.1 in
Seat Height 925 mm / 36.4 in

Dry Weight

114 kg / 251 lbs

GVWR

335 kg / 739 lbs

Engine Oil Capacity

0.60 L / 0.63 US qt / 0.50 Imp qt, full synthetic oil (Motorex Power Synt 4T 10W/50)

Fuel Capacity

9.0 L / 2.4 US gal / 2.0 Imp gal

Fuel Reserve

2 L / 2.1 US qt / 1.8 Imp qt

Review

1000PS

KTM is celebrating its impressive 160+ World Championship titles from the past 35 years with the announcement of the limited Champion’s Edition motorcycle.

In 1974, the Russian Gennadij Moiseev won the very first 250cc World Championship Title for KTM, thus writing the first chapter of an unparalleled motorsports success story. 35 years later, KTM has amazingly amassed more than 160 World Championship titles in a wide variety of racing series.

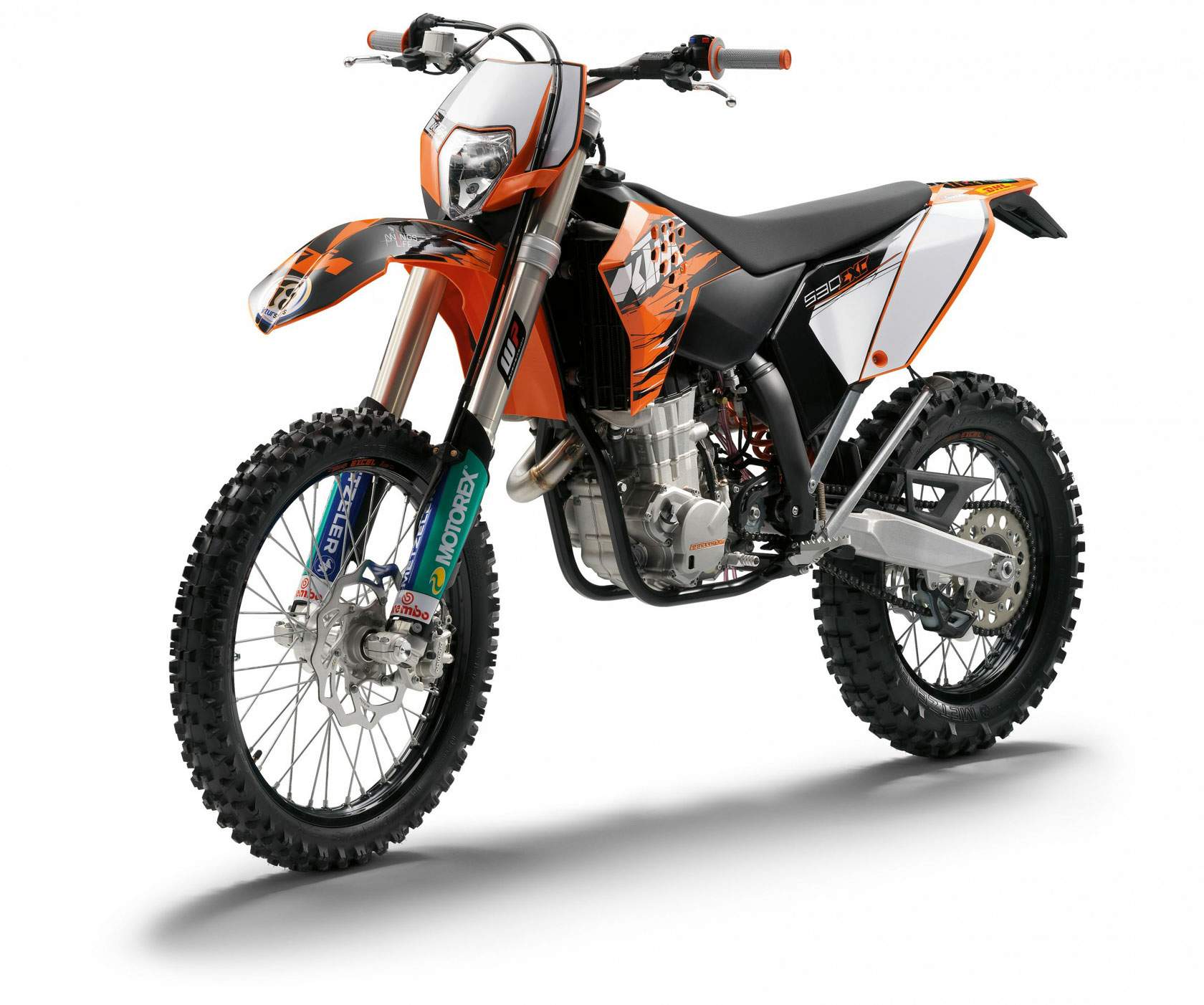

This summer KTM is presenting the Champion’s Edition bike to honor the past KTM Champions. As true champs these limited bikes stand out from the standard KTM models with their one-of-a-kind racing design influenced by two-time Motocross World Champion Heinz Kinigadner. The Champion’s Edition bike comes complete with a Red Bull Kini Graphics kit, headlight and taillight package, skid plate, front axle pull, black shrouds, billet fuel cap and many more KTM PowerParts items to truly make this bike match that of its Champions.
