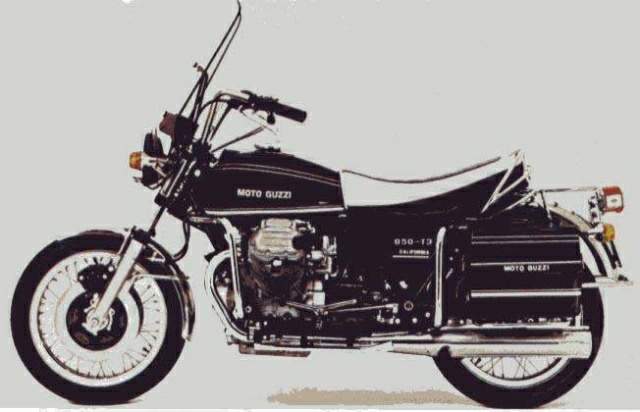

Moto Guzzi 850 T3 California







Make Model

Moto Guzzi 850 T3 California

Year

1975

Engine

Four stroke, 90° V twin, longitudinally mounted, OHV, 2 valve per cylinder

Capacity

844 cc / 51.5 cu-in
Bore x Stroke 83 x 78 mm
Cooling System Air cooled
Compression Ratio 9.5:1
Lubrication Gear driven oil pump with replaceable full flow oil filter

Induction

2x 30mm Dell'Orto VHB carburetors

Ignition

Battery with double contact breakers and coils
Starting Electric

Max Power

68.5 hp / 51.0 kW @ 7000 rpm

Max Torque

54.2 ft-lb / 7.5 kgf-m @ 5800 rpm

Transmission

5 Speed
Final Drive Shaft

Front Suspension

Telescopic forks

Rear Suspension

Dual shocks

Front Brakes

2x 300mm discs 1 piston calipers

Rear Brakes

Single 242mm disc  1 piston caliper

Front Tyre

3.50-18

Rear Tyre

4.10-18
Dimensions Length 2197.1 mm / 86.5 in
Width    863.6 mm / 34 in
Height 1168.4 mm / 46 in
Wheelbase 1473.2 mm / 58 in

Dry Weight

225 kg / 496 lbs

Fuel Capacity

25 Litres / 6.6 US gal
