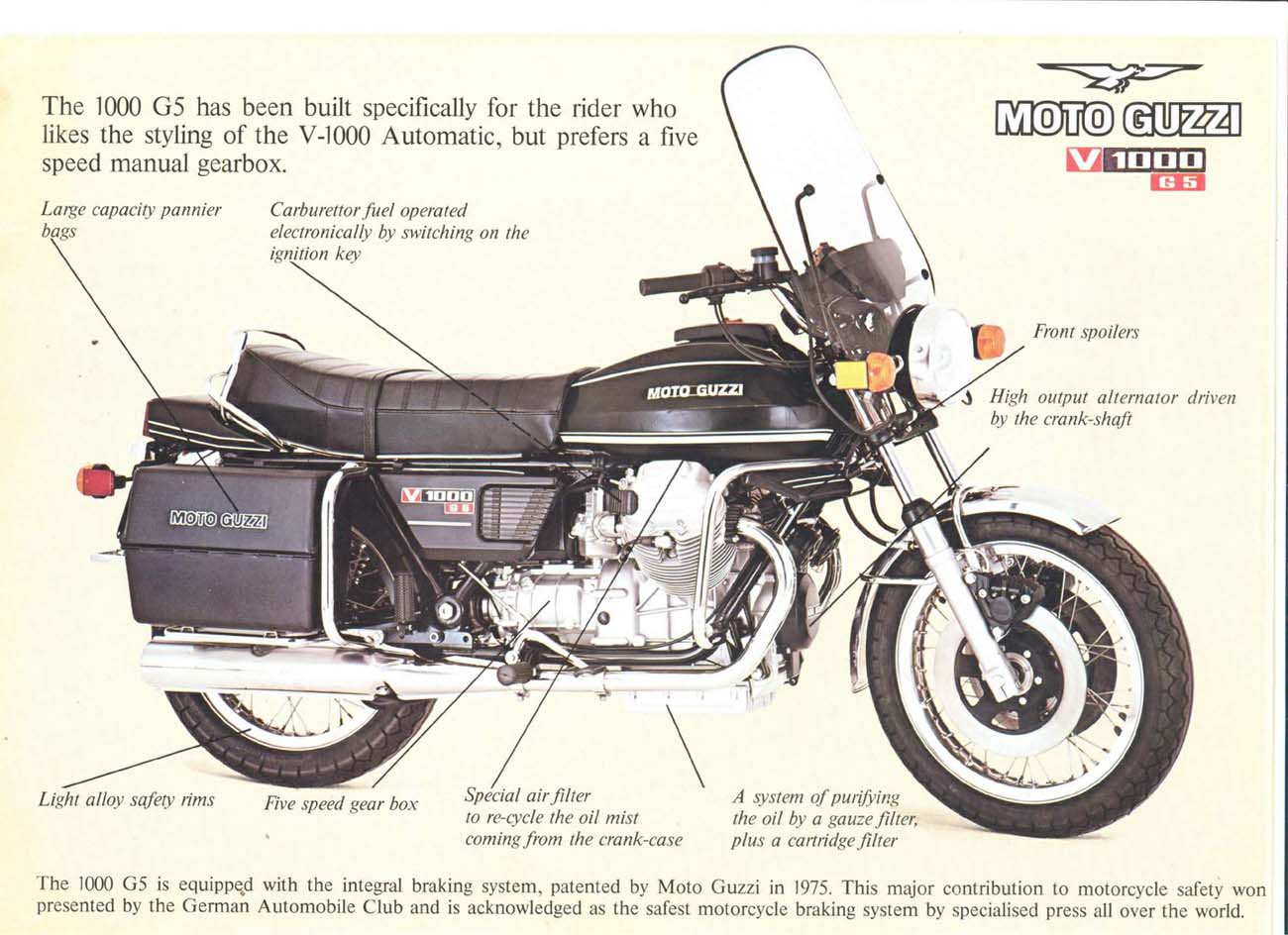

Moto Guzzi V 1000G5

.

Make Model

Moto Guzzi V 1000G5

Year

1978 - 80

Engine

Four stroke, 90°V twin, longitudinally mounted, OHV, 2 valve per cylinder.

Capacity

949 cc / 57.9 cu-in
Bore x Stroke 88 x 78 mm
Cooling System Air cooled
Compression Ratio 9.2:1

Induction

2x Dell'Orto VHB30 CD/CS carburetors
Lubrication By pressure pump

Ignition

Battery & coil
Starting Electric

Max Power

67 hp / 49 kW @ 6700 rpm

Max Torque

64.6 Nm / 47.7 lb-ft  @ 5750 rpm
Clutch Dry multi plate

Transmission

5 Speed
Final Drive Shaft
Frame Duplex cradle, disassemblable

Front Suspension

Telescopic forks

Rear Suspension

Swinging fork

Front Brakes

2x 300mm discs

Rear Brakes

Single 242mm disc

Front Tyre

100/90 H18

Rear Tyre

110/90 H18

Dry Weight

220 kg / 486 lbs

Fuel Capacity

24 Litres / 6.3 US gal
.
.
