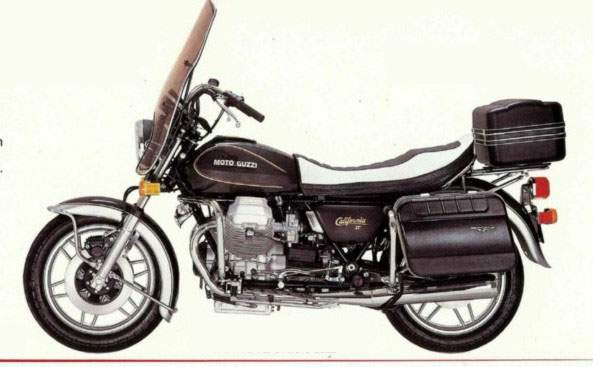

Moto Guzzi V1000 California II







Make Model

Moto Guzzi V1000 California II

Year

1981 - 83

Engine

Four stroke, V twin, longitudinally mounted, OHV, 2 valve per cylinder

Capacity

948.8 cc / 57.8 cu-in
Bore x Stroke 88 x 78 mm
Cooling System Air cooled
Compression Ratio 9.2:1

Induction

2x 30mm Dellorto VHB 30 Carburation Main Jet 125 Carburation Idle Jet 50 Fuel Minimum Octane Rating 97 Pilot Screw Setting 1.5

Ignition

Battery coil
Starting Electric

Max Power

65 hp / 47.4 kW @ 6700 rpm

Max Torque

75.3 Nm / 55.6 lb-ft @ 5250 rpm
Clutch Twin plat dry type

Transmission

5 Speed
Final Drive Shaft

Front Suspension

Telescopic forks

Rear Suspension

Dual Koni shocks 5-way preload

Front Brakes

2x 300mm discs 2 piston calipers

Rear Brakes

Single 275mm disc 2 piston caliper

Front Tyre

110/90 V18

Rear Tyre

120/90 V18

Dry Weight

250 kg / 555 lbs

Fuel Capacity

25 Litres / 6.6 US gal
