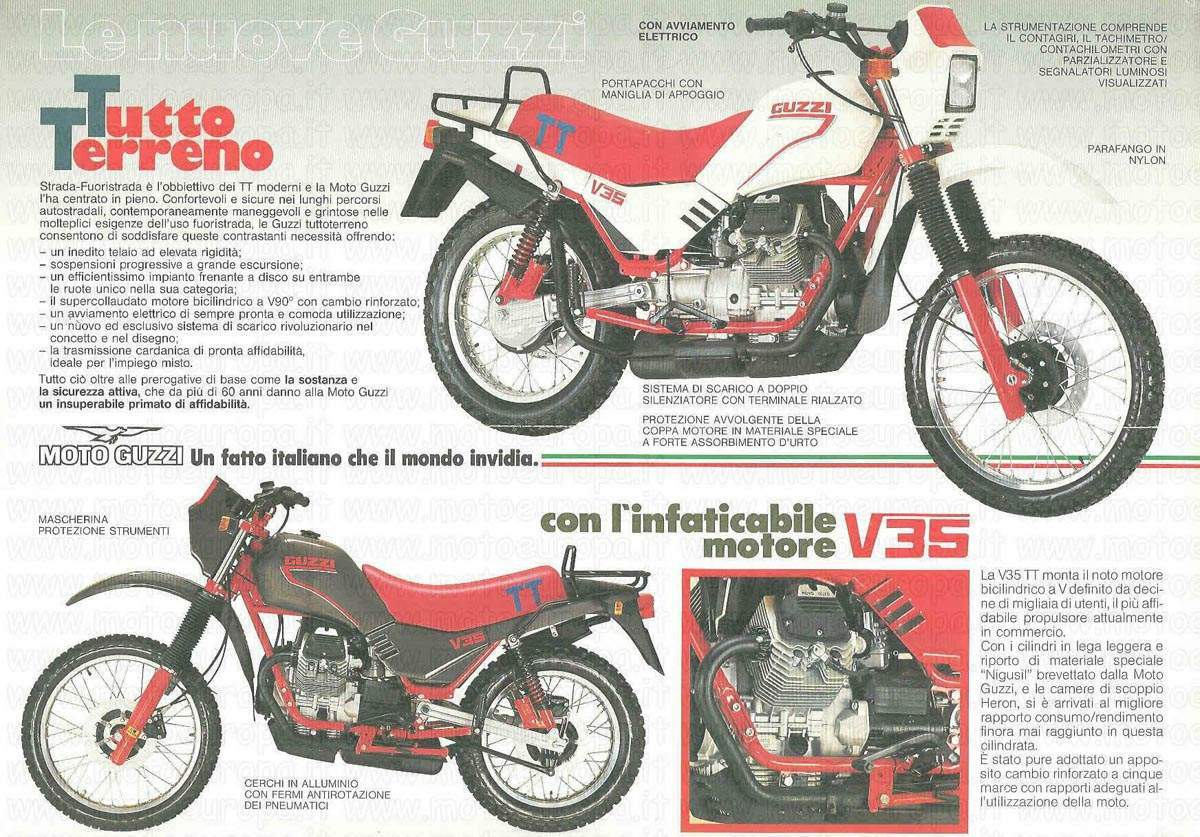

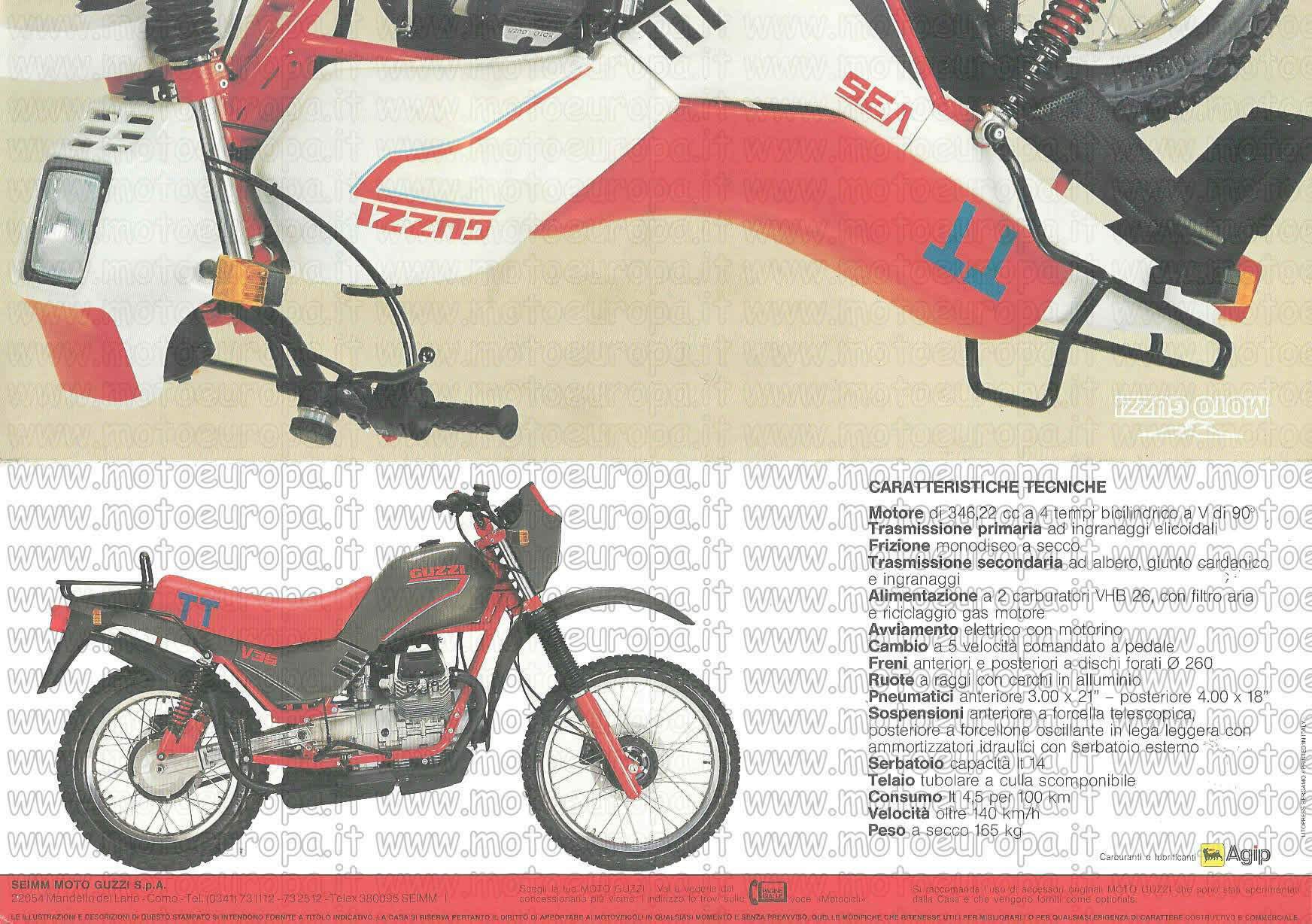

Moto Guzzi V 35TT

.

Make Model

Moto Guzzi V 35TT

Year

1984

Engine

Four stroke, 90° V twin, longitudinally mounted, OHV, 2 valve per cylinder

Capacity

346.2 cc / 21.1 cu-in
Bore x Stroke 74 x 40,6 mm.
Cooling System Air cooled
Compression Ratio 10.5:1
Lubrication Pressure pump

Induction

2x Dell'Orto VHB 26 carbs

Ignition

Electronic
Starting Electric

Max Power

35 hp / 26 kW @ 8100 rpm

Max Torque

30 hp / 22.3 kW @ 7800 rpm
Clutch Dry with single disc

Transmission

5 Speed
Final Drive Shaft

Front Suspension

Telescopic fork

Rear Suspension

Light alloy swinging arm with oil/air dampers

Front Brakes

Single 260mm disc

Rear Brakes

180mm drum

Front Tyre

3.00 - 21

Rear Tyre

4.00 - 18

Dry Weight

160 kg /  352 lbs

Fuel Capacity

16 Litres / 4.2 US gal
