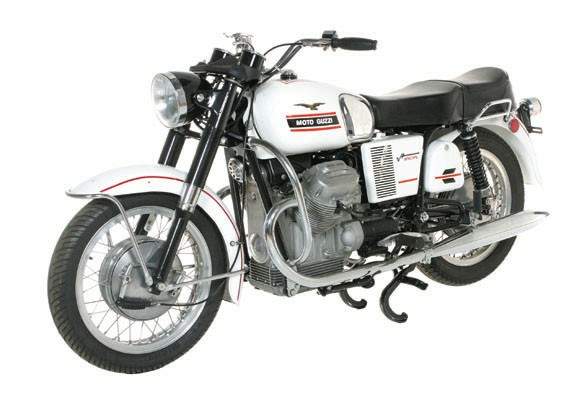

Moto Guzzi V-7 750 Special

.

Make Model

Moto Guzzi V-7 750 Special

Year

1969-72

Engine

Air cooled, four stroke, V twin, longitudinally mounted, OHV, 2 valve per cylinder.

Capacity

757
Bore x Stroke 83 x 70 mm
Compression Ratio 9.0:1

Induction

2x 29mm Dell'Orto VHB 29CD (right) and CS (left) carb

Ignition

Starting

Max Power

53 PS @ 6000 rpm

Max Torque



Transmission

4 Speed
Final Drive Shaft

Front Suspension

Telehydraulicforks

Rear Suspension

Swinging arm with hydraulic dampers.

Front Brakes

Single 220mm drum

Rear Brakes

220mm drum

Front Tyre

4.00 -18

Rear Tyre

4.00 -18

Dry Weight

228 kg

Fuel Capacity

22.1 Litres
