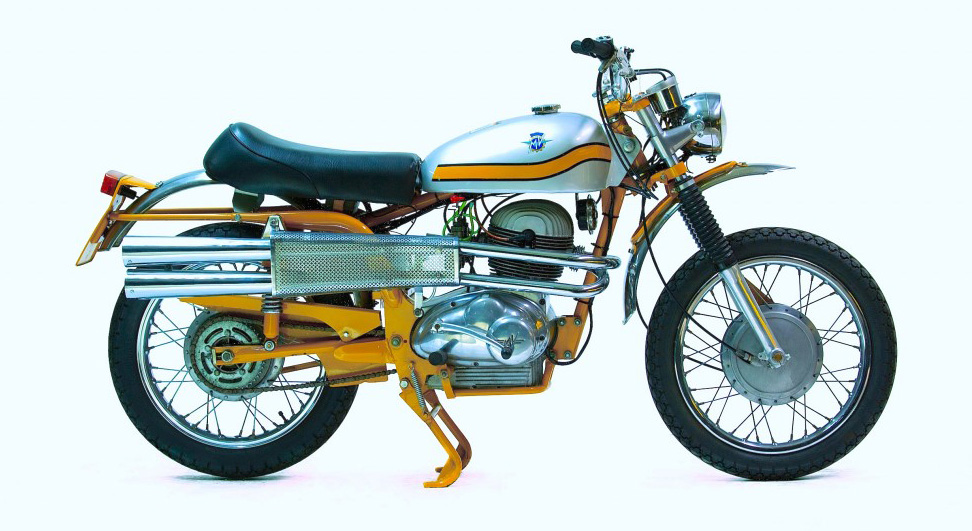

MV Agusta 350 Scrambler B







Make Model

MV Agusta 350 Scrambler B

Year

1972 - 74

Engine

Four stroke, 20° inclination parallel twin cylinder,  OHV engine with rocker support

Capacity

349 cc / 21.3 cu-in
Bore x Stroke 63 x 56 mm
Cooling System Air cooled
Compression Ratio 9.2:1
Lubrication Wet sump

Induction

2x 24mm Dell'Orto carburetors

Ignition

Electronic
Starting Kick

Max Power

27 hp / 20.1 kW @ 7600 rpm

Clutch

Wet multiple plate clutch

Transmission

5 Speed
Final Drive Chain
Frame Single beam tubular and pressed steel

Front Suspension

Telescopic hydraulic fork

Rear Suspension

Swinging arm fork with adjustable hydraulic shock absorbers

Front Brakes

200mm Drum

Rear Brakes

200mm Drum

Front Tyre

2.75-18

Rear Tyre

3.25-18
Dimensions
Length: 1960 mm / 77.1 in
Width: 620 mm / 24.4 in
Wheelbase 1300 mm / 51.1 in

Weight

149 kg / 328.5 lbs

Fuel Capacity

13 Litres / 3.7 US gal

The new 350 twin was also installed into a particular style of motorcycle called Scrambler. It was a style that was popular in the USAbut not on the domestic market.
The configuration was for off road use with raised handlebar and exhaust.
The road tyres did not guarantee great off road ability.
