MV Agusta Dragster 800RR Lewis Hamilton Limited Edition



Make Model

MV Agusta Dragster 800RR Lewis Hamilton Limited Edition

Year

2016

Engine

Four stroke, transverse three cylinder. DOHC, 4 Valve per cylinder,

Capacity

798 cc / 48.68 cu. in
Bore x Stroke 79 x 54.3 mm
Cooling System Cooling with separated liquid and oil radiators
Compression Ratio 13.3;1
Engine management system Integrated ignition - injection system MVICS 2.0 (Motor & Vehicle Integrated Control System) with six injectors. Engine control unit Eldor EM2.0, throttle body full drive by wire Mikuni, pencil-coil with ion-sensing technology, control of detonation and misfire. Torque control with four maps, Traction Control with eight levels of intervention Electronic quick-shift MV EAS 2.0 (Electronically Assisted Shift up & down)

Ignition

Multipoint electronic injection
Starting Electric
Battery PERFDRfTIFinCE
Alternator 350 Wat 5000 r.p.m. 12V-8.6Ah

Max Power

103 kW / 140 hp @ 13100 rpm

Max Torque

86 Nm / 8.77 kgm @ 10100 rpm
Clutch  Wet, multi plate with slipper clutch

Transmission

Cassette style 6 speed constant mesh
Final Drive Chain
Primary Drive 19/36 - Gear ratio
Gear Ratio 1st 13/37  2nd 16/34  3rd 18/32  4th 19/30  5th 21/30 - Sixth gear 22/29 6th 16/41
Frame ALS Steel tubular trellis Aluminium alloy

Front Suspension

Marzocchi “UPSIDE DOWN” telescopic hydraulic fork in DLC treated aluminium, with red colour anodized fork legs and having rebound compression damping and spring preload external and separate adjustment - Fork dia. 43 mm
Front Wheel Travel  125 mm / 4.92 in

Rear Suspension

Progressive Sachs, single shock absorber with rebound and compression damping and spring preload adjustment - Single sided swing arm material Aluminium alloy
Rear Wheel Travel 125 mm /  4.92 in.

Front Brakes

2x 320mm floating discs 4 piston calipers

Rear Brakes

Single 220mm disc 2 piston caliper
Rim Front Material/size With aluminium alloy spokes 3,50” x 17”
Rim Rear Material/size With aluminium alloy spokes 6.00” x 17”

Front Tyre

120/70- ZR 17 M/C (58 W)

Rear Tyre

200/50- ZR 17 M/C (75 W)FAIRING Material Thermoplastic
Trail 95 mm / 3.74 in.
Dimensions  Length 2060 mm / 81.0 in
Width 825 mm / 32.4 in
Wheelbase 1380 mm / 54.3 in
Ground Clarence 160 mm / 6.3 in
Seat Height 810 mm / 31.89 in

Dry Weight

168 Kg / 370.4 lbs

Fuel Capacity

16.6 Litres / US 4.3 gal
Reserve 5 Litres / 1.3 US gal



MV Agusta has teamed up with 2x Formula One World Champion, Lewis Hamilton to release a stunning new version of the Dragster RR motorcycle.

Working closely with the MV Agusta CRC (Castiglioni Research Center) design team, Lewis ensured that bike specifications and performance perfectly matched his requirements. The creation of the Dragster RR bike comprised of an on-going collaborative process between the F1 World Champion and the MV Agusta Team, from concept to hand assembled production.

Giovanni Castiglioni, President and CEO of MV Agusta, said: “We are proud to be partnering with a passionate racer like Lewis Hamilton. It is great news for us and for everyone around the world that loves MV Agusta”.

There are no technical changes over the standard Dragster RR, but MV says the LH44 has received over 50 design details to make it stand out from the standard Dragster RR. It’s dripping in Ergal (an aluminium-zinc alloy) and carbon-fibre, which has been given a 3k opaque finish. The seat is also trimmed with quilted alcantara.

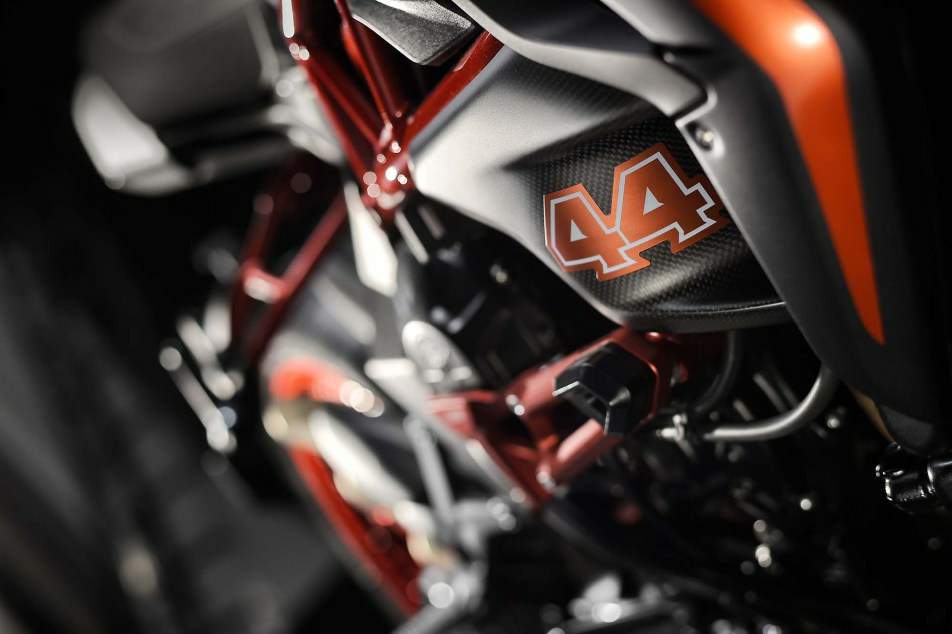

The Dragster RR LH44’s defining colours are red and white,  it gets red wheels, plus a red trellis frame and matching engine protectors. The bike also carries some additional graphics inspired by Lewis Hamilton’s helmet and his race number - 44. Only a  limited of 244 bikes will be build.
