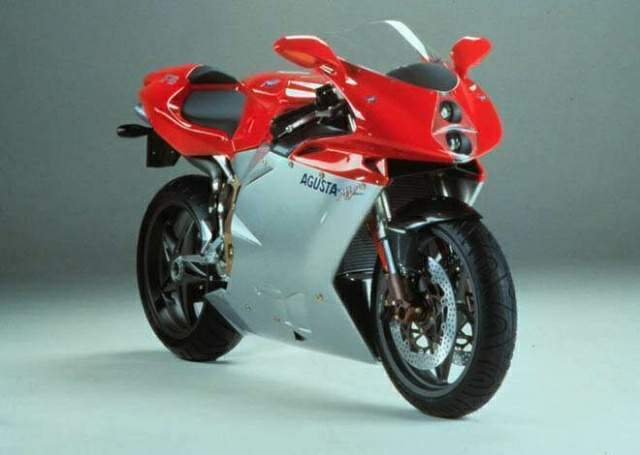

MV Agusta F4 750S







Make Model

MV Agusta F4 750S

Year

1998 - 04

Engine

Four stroke, transverse four cylinder. DOHC, 4 valves per cylinder.

Capacity

749.4 cc / 45.7 cu-in

Bore x Stroke 73.8 x 43.8 mm
Cooling System Liquid cooled
Compression Ratio 12.0:1

Induction

Fuel Injection

Ignition

Multipoint electronic

Starting Electric

Max Power

126 hp / 91.9 kW @ 12500 rpm

Max Torque

72 Nm / 52.8 lb-ft @ 10500 rpm

Transmission

6 Speed

Final Drive Chain

Front Suspension

49mm Upside-down telescopic hydraulic fork with rebound-compression damping and spring preload adjustment.

Rear Suspension

Progressive, with single sided swingarm, single shock absorber with rebound-compression damping and spring preload adjustment

Front Brakes

2x 310mm discs 6 piston calipers

Rear Brakes

Single 210mm disc  4 piston caliper

Front Tyre

120/65 ZR17

Rear Tyre

190/50 ZR17

Wheelbase 1412 mm / 55.6 in
Seat Height 790 mm / 31.1 in

Dry Weight

189 kg / 396.8 lbs

Fuel Capacity

21 Litres / 5.8 US gal

Consumption Average

 18.7 km/lit

Standing ¼ Mile

 11.2 sec  /  122 mph

Top Speed

 257 km/h / 160 mph

From its unveiling in 1997, the MV Agusta F4S has caught bikers' imaginations like no machine since Ducati's 916. Both designs were penned by Massimo Tamburini. The styling and specification of the MV are unique. The deep red-and-silver gloss of the sleek bodywork cunningly combines smooth and angular shapes. The radical four-into-four exhaust terminates in a set of underseat silencers which give a glorious roar on the move. The F4's engine has the technical prowess to match its design. The cylinder head uses a distinctive radial valve design - the valve pairs are slightly splayed away from each other so the valve stems are at an angle. This allows a more efficient combustion chamber shape, but is difficult to manufacture.
