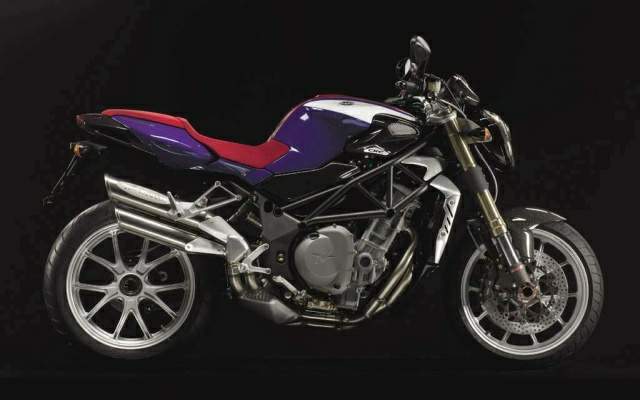

MV Agusta F4 750 Brutale America







Make Model

MV Agusta F4 750 Brutale America

Year

2005 - 07

Engine

Four stroke, transverse four cylinder. DOHC, 4 valves per cylinder

Capacity

749.4 cc / 45.7 cu-in

Bore x Stroke 73.8 x 43.8 mm
Cooling System Liquid cooled
Compression Ratio 12.0:1
Lubrication Wet sump

Induction

Fuel Injection, Multipoint electronic injection

Ignition

Multipoint electronic

Starting Electric

Max Power

127 hp / 92.6 kW @ 12500 rpm

Max Torque

77.4 Nm / 57.0 lb-ft @ 10500 rpm

Clutch Wet, multi-plate

Transmission

6 Speed

Final Drive Chain
Frame CrMo Steel tubular trellis and magnesium alloy

Front Suspension

Upside-down telescopic hydraulic fork with rebound-compression damping and spring preload adjustment 49mm diameter

Rear Suspension

Progressive, with single sided swingarm, single shock absorber with rebound-compression damping and spring preload adjustment

Front Brakes

2x 310mm discs  6 piston calipers

Rear Brakes

Single 210mm disc 4 piston caliper

Front Tyre

120/65 ZR17

Rear Tyre

190/50 ZR17

Wheelbase 1414 mm / 55.7 in
Seat Height 805 mm / 31.6 in

Dry Weight

185 kg / 407.8 lbs

Fuel Capacity

19 Litres / 5.0 US gal

MVSP Brutale America Full Option Kit
Limited Edition of 300 Brutale America kits worldwide

The Full Option Kit includes:

  • Carbon Fiber front mudguard
  • Carbon Fiber dashboard cover
  • Carbon Fiber oil cooler guard
  • Carbon Fiber ignition switch cover
  • Carbon Fiber right side air-box panel
  • Carbon Fiber left side air-box panel

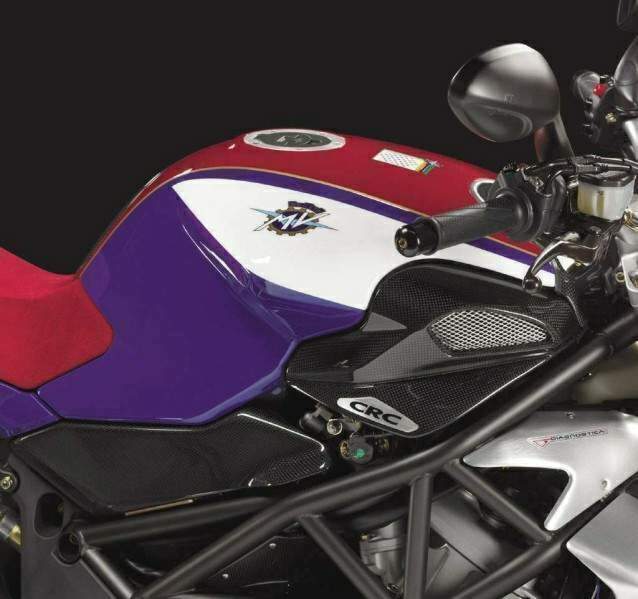

  • Red/White/Blue painted plastic fuel tank
  • Carbon Fiber right side fuel tank panel
  • Carbon Fiber left side fuel tank panel
  • Carbon Fiber right rear cylinder cover
  • Carbon Fiber left rear cylinder cover
  • Blue right and left painted plastic tail section panels
  • Red "Alcantara" front seat
  • Blue "Alcantara" rear seat
  • Carbon Fiber taillight surround
  • Carbon Fiber upper chain guard
  • Carbon Fiber lower chain guard
  • Silver Marchesini ten-spoke forged aluminum front wheel rim
  • Silver Marchesini ten-spoke forged aluminum rear wheel rim
  • Engraved plaque with the number of the bike and matching "Limited Edition" certificate
