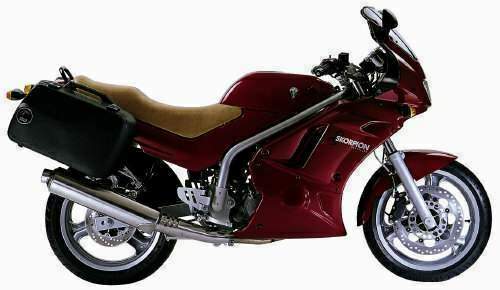

MuZ Skorpion 660 Traveller







Model

MuZ Skorpion 660 Tour

Year

1996

Engine

Four stroke, single cylinder, SOHC, 5 valves

Capacity

660 cc / 40.2 cu-in
Bore x Stroke 100 x 84 mm
Cooling System Liquid cooled
Compression Ratio 9.2:1

Induction

26mm Teikei carburetors

Ignition

CDI
Starting Electric

Max Power

58 hp / 42.3 kW @ 6500 rpm

Max Torque

58 Nm / 35.0  lb-ft @ 5500 rpm

Transmission

5 Speed
Final Drive Chain

Front Suspension

Telescopic forks, compression and damping adjustable.

Front Wheel Travel 120 mm / 4.7 in

Rear Suspension

Gas-pressure-monoshock 4,adjustable positions

Rear  Wheel Travel 130 mm / 5.1 in

Front Brakes

Single 280mm disc 4 piston caliper

Rear Brakes

Single 240mm disc 2 piston caliper

Front Tyre

120/60-17

Rear Tyre

160/60-17
Wheelbase 1420 mm / 55.9 in
Seat Height 785 mm / 30.9 in

Dry Weight

182 kg / 401 lbs

Fuel Capacity

18 Litres / 4.7 US gal
