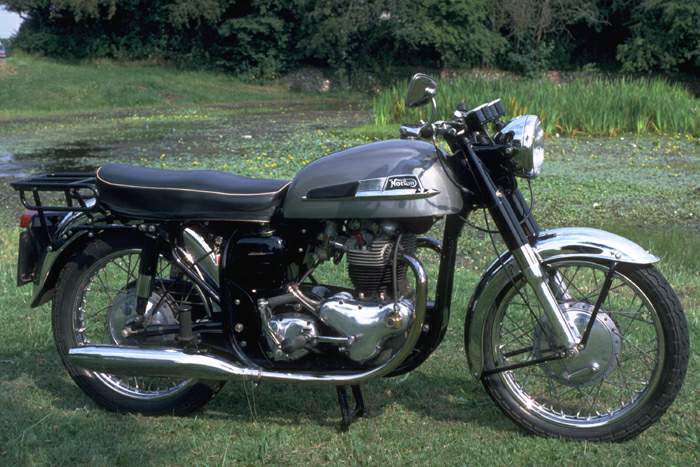

Norton 650SS

.

Make Model.

Norton 650SS

Year

1968

Engine

Four stroke, parallel twin cylinder, push rod, 2 valves per cylinder.

Capacity

647 cc / 39.5 cu in
Bore x Stroke 68 X 89 mm
Compression Ratio 8.9:1
Cooling System Air cooled

Induction

2 x Ø30 mm Amal concentric carburetors

Starting

Kick

Max Power

38.8 hW / 52 hp @ 6800 rpm

Transmission

4 Speed

Final Drive

Chain

Frame

Featherbed duplex steel cradle

Front Suspension

Telescopic forks

Rear Suspension

Dual shocks, 5-way adjustable

Front Brakes

Ø203 mm Drum

Rear Brakes

Ø178 mm Drum

Front Tyre

3.25-19

Rear Tyre

4.00-18

Dry-Weight

185 kg / 408 lbs

Fuel Capacity

13.5 L / 3.6 US gal

Top Speed

185 km/h / 115 mph
