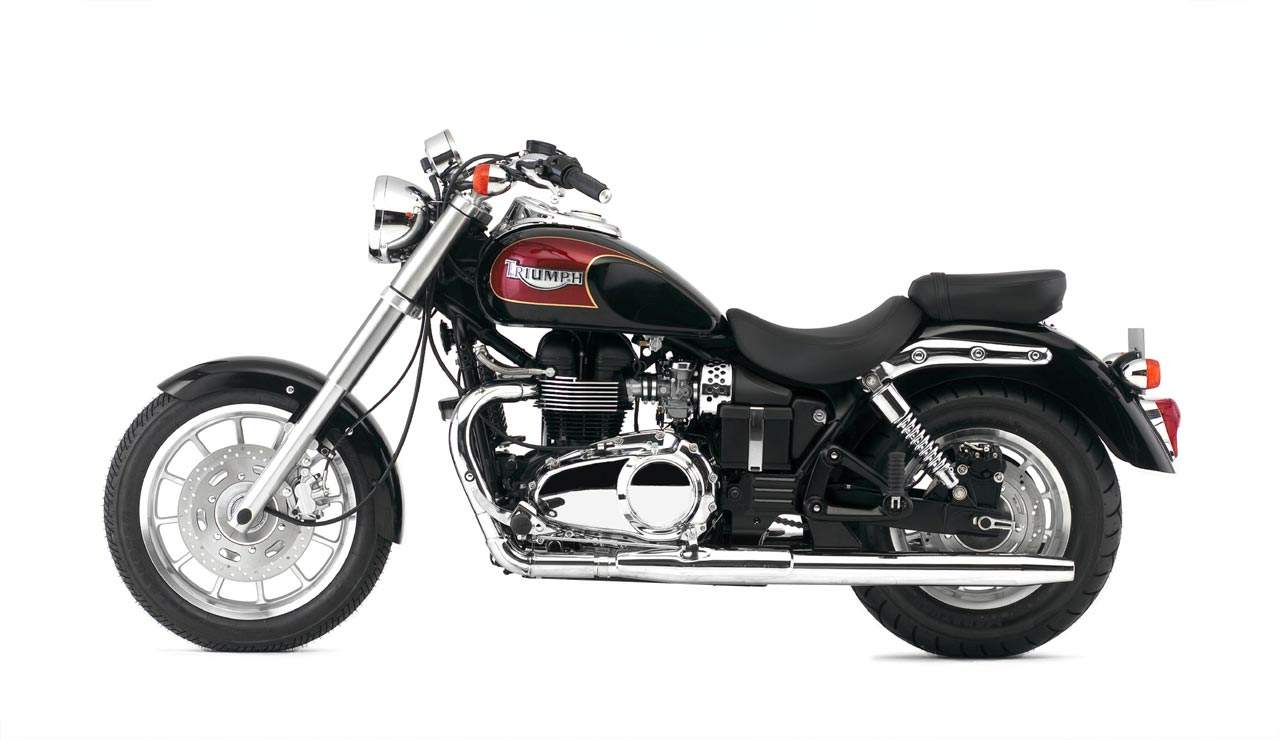

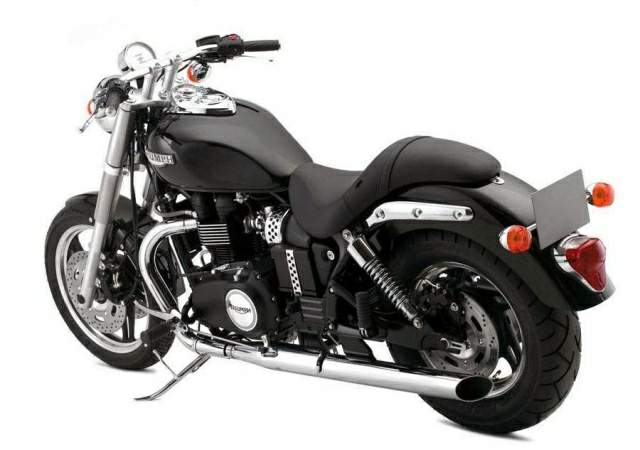

Triumph America







Make Model.

Triumph America

Year

2007 - 08

Engine

Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder

Capacity

865 mm / 52.8 cu in
Bore x Stroke 90 x 68 mm
Cooling System Air-cooled
Compression Ratio 9.2:1
Lubrication Wet sump
Exhaust Stainless steel twin-walled headers, twin chromed silencers

Induction

Multipoint sequential electronic fuel injection with SAI

Ignition

Digital inductive type
Starting Electric

Max Power

40 kW / 54 hp @ 6750 rpm

Max Torque

69 Nm / 7.03 kgf-m / 50.9 lb-ft @ 4800 rpm
Clutch Wet, multiple discs, cable operated

Transmission

5 Speed
Final Drive Chain, X-ring
Frame Steel, double cradle frame

Front Suspension

41 mm Fork
Front Wheel Travel 120 mm / 4.7 in

Rear Suspension

Chrome spring twin shocks with adjustable preload
Rear Wheel Travel 105 mm / 4.13 in

Front Brakes

Single 310mm disc, 2 piston caliper, Nissen

Rear Brakes

Single 255mm disc, 2 piston caliper, Nissen

Front Tyre

110/90 R18 Bridgestone

Front Wheel

3.00 x 16, Cast aluminium alloy, 12 spoke

Rear Wheel

4.00 x 15, Cast aluminium alloy, 12 spoke

Rear Tyre

170/80 R15 Bridgestone
Rake 33.3°
Dimensions Length 2424 mm / 95.4 in
Width     960 mm / 37.8 in
Height  1170 mm / 46.1 in
Wheelbase 1655 mm / 65.2 in
Seat Height 720 mm / 28.3 in

Dry Weight

225 kg / 496 lbs
Wet Weight 250 kg / 550 lbs

Fuel Capacity

19.3 Litres / 5.1 US gal / 4.2 Imp gal

The America is just made for the open road. It feels planted and rides easy. For 2007 the jet-black, parallel twin motor has been cranked up to 865cc to give the bike more torque. And more torque means fewer gear changes - just what is needed for relaxed cruising. The riding position puts the rider at the centre of the universe with a low, sofa of a seat that lets feet be planted firmly on the ground when coming to a stop. The pillion gets a exceptionally comfortable riding experience too with a roomy seat.

Spinning a beefy, 170/80-section rear tyre (crowning a new-for-2007 cast 15 inch rim) through a five-speed gearbox the engine fires its heartbeat out through a pair of deep-chrome reverse cone silencers. Heavy duty, wide set telescopic forks add substance and a solid look to the America’s raked front end, as does the new 18in cast front wheel, shod with its 110/90 tyre. Disc brakes front and rear matched to twin-piston calipers take care of the stopping duties.

Cruising is all about the essence of freedom and individuality and the America provides both. It’s also ready to further personalise, with the simple addition of luggage and extra chrome work. There are also entire custom painted body kits to mark out a personal identity.

The need to ride and explore lies deep within the human soul. The open road beckons, waiting to be ridden and the America is a relaxed and enjoyable passport to two-wheeled freedom.

Why not go along to your Triumph dealer and test ride your ticket to freedom?

TOUGH AND READY

BRITISH ENGINEERED STYLE

With its wide bars, forward set pegs and relaxed, parallel twin power the America mixes classic British engineering with style from the highways of the USA.

For 2007, the America receives the following changes:

- Increased engine capacity from 790cc to 865cc
- Reverse cone silencers
- New cast wheels
- Adjustable clutch and front brake levers
- Black engine with chromed covers
- Restyled chain cover, pillion footrest hanger and upper fork shrouds
- Revised, more comfortable pillion seat
- Four new paint schemes - Phantom Black; Phantom Black/Sunset Red; Phantom Black/Tornado Red; Pacific Blue/New England White
