Triumph Bonneville T100 "Multi-Chequer"







Make Model.

Triumph Bonneville T100 Multi Chequer

Year

2005

Production

1 Unit

Engine

Four stroke, parallel twin cylinder, DOHC, 4 valves per cylinder

Capacity

790 cc / 48.2 cu in
Bore x Stroke 86 x 68 mm
Cooling System Air-cooled
Compression Ratio 9.2:1
Lubrication Wet sump
Engine Oil Synthetic, 15W/50

Induction

Twin carburetors, with throttle position sensor and electric carburettor heaters

Ignition

Digital
Spark Plug NGK, DPR8EA-9
Starting Electric

Max Power

45.2 kW / 62 hp @ 7400 rpm

Max Torque

60 Nm / 6.1 kgf/m / 44.3ft-lb @ 3500 rpm
Clutch Wet, multi-plate

Transmission

5 speed
Final Drive Chain
Frame Tubular steel cradle, swingarm twin-sided, tubular steel

Front Suspension

41mm Telescopic forks

Rear Suspension

Chrome spring twin shocks with adjustable preload

Front Brakes

Single 310 mm disc, 2 piston caliper

Rear Brakes

Single 255 mm disc, 2 piston caliper
Wheels Front Spoked, 19 x 2.5in
Wheels Rear Spoked, 17 x 3.5in

Front Tyre

100/90 R19

Rear Tyre

130/80 R17
Rake 29°
Trail 117 mm / 4.6 in
Dimensions Length 2250 mm / 88.6 in
Width    860 mm / 33.8 in Handlebars
Height 1105 mm / 43.5 in
Wheelbase 1493 mm / 58.8 in
Seat Height 775 mm / 30.5 in

Dry Weight

205 kg / 451 lbs

Fuel Capacity

16 Litres / 4.2 US gal / 3.5 Imp gal

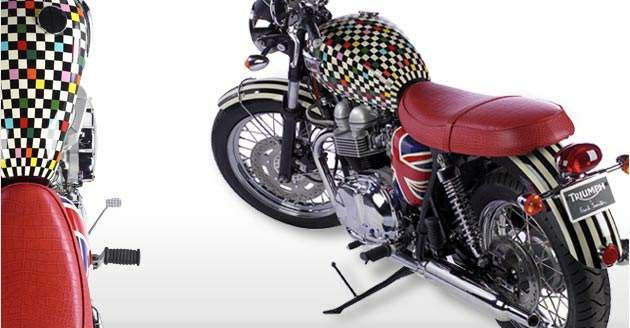

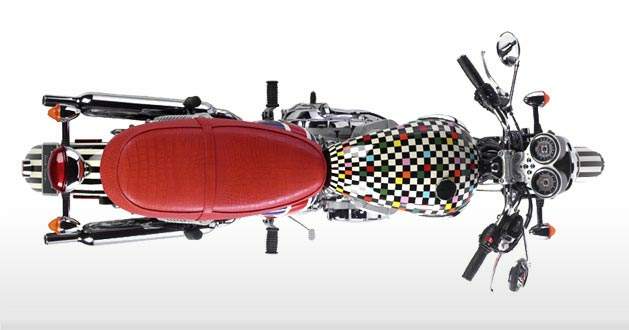

In case you though that Paul Smith's 2005 Triumph Bonneville T100 Chequer was a peculiar Bonnie, then prepare for something even more radical: the Multi-Chequer version, adding colors to the old pattern, for yet another one-off bike.
The 2005 Bonneville T100 Multi-Chequer is also a one-off motorcycle and unless it surfaces in some auction, there chances to see it rolling down the street are technically very close to zero.

They say two heads are better than one. When the heads are Triumph and Paul Smith, there's no question about it. Passion for fashion; the Bonneville T100 like you've never seen it before.

The initial collaboration created 'Triumph by Paul Smith', a modern collection of accessories and jeans wear inspired by Triumph Motorcycles. However, as the partnership grew so did the creativity and nine Bonneville T100's were customised with individual paint schemes designed by Paul Smith to complement the clothing and accessory range. These nine one-off bikes generated so much interest that Triumph and Paul Smith created two more original Bonneville T100 custom designs, nicknamed the “Live-Fast” and “Multi-Union”, especially for retail. Only 50 of each of these two Limited Edition Triumph Bonneville T100s by Paul Smith will be produced for sale globally.

With all the heritage that makes these brands great, this is quintessentially British design with an added Paul Smith twist.

Bonneville T100

A modern incarnation of the classic sixties speedster, the Bonneville T100 oozes authentic motorcycle chic. Its heavily chromed covers, distinctive air cooling fins and twin clocks complement the delicious Paul Smith designed paintwork, while the twin cylinder engine, with its distinctive throaty burble through pea shooter pipes, and easy-handling chassis make the T100 as good to ride as it is to look at.

Style-Ville

Paul Smith believes you can find inspiration in anything. His designs bring together tradition, humour and style to evoke British individuality and eccentricity. Over the years, he has become more than a fashion label, and since the seventies, the Paul Smith brand has been a major influence on UK design and culture - constantly redefining the essence of 'Britishness'.

Put them together...

With the combination of individual style, enduring quality and true Britishness, it makes perfect sense for Paul Smith and Triumph to get together. As the Commercial Director of Triumph, Tue Mantoni says;

"Paul Smith and Triumph are cut from the same cloth; with long-standing British heritage, classic design style and a global cult following."

And what do you get?

The Triumph by Paul Smith range of clothing and accessories are now available in selected Paul Smith stores globally.

Press Release

Paul Smith customised nine Triumph Bonneville T100’s with one-off paint designs. These nine individually designed bikes were not intended for sale, but to be used as press pieces and global promotional activity.

In response to the overwhelming reaction to these special bikes, Triumph has decided to produce two limited edition Paul Smith designs for sale. Inspired by two of the original customised designs, the “Live-Fast” and “Multi-Union” models feature special hand-painted bodywork and mock-croc leather seats. Fifty of each design will be produced for sale globally and each bike will be individually numbered and authenticated with a certificate, signed by Paul Smith and John Bloor, Triumph’s owner.
