Yamaha SRX 600

.

Make Model

Yamaha SRX 600

Year

1986

Engine

Four stroke, single cylinder, SOHC, 4 valve

Capacity

608 cc / 37.1 cu-in
Bore x Stroke 96 х 84 mm
Cooling System Air cooled
Compression Ratio 8.5:1

Induction

27mm Teikei 2KY27PV carburetor

Ignition

CDI
Starting Kick

Max Power

45 hp / 34 kW @ 6500 rpm

Max Power Rear Tyre

37.9 hp / 28.2 kW @ 6300 rpm

Max Torque

4.9 kgf-m / 34 lb-ft / 46 Nm @ 5500 rpm

Transmission

5 Speed
Final Drive Chain

Front Suspension

36mm Telescopic forks
Front Wheel Travel 134 mm / 5.2 in

Rear Suspension

Dual Kayaba shocks 5-way adjustable for preload

Front Brakes

2x 267mm disc

Rear Brakes

Single 240mm disc
Wheels Section 3-spoke cast aluminium

Front Tyre

110/70-17

Rear Tyre

150/60-17
Dimensions Length 2049 mm / 80.6 in
Width    740 mm / 29.1 in
Height 1140 mm / 44.8 in
Wheelbase 1380 mm / 54.3 in
Seat Height 770 mm / 20.3 in
Ground Clearance 150 mm / 5.9 in

Dry Weight

155 kg / 341.7 lbs
Wet Weight 172 kg / 379.2 lbs

Fuel Capacity

15 Litres / 3.9 gal

Consumption Average

20.2 km/lit

Braking 60 - 0 / 100 - 0

14.2 m / 41.2 m

Standing ¼ Mile

14.1 sec / 145.0 km/h

Top Speed

171.9 km/h / 106.6 mph
.

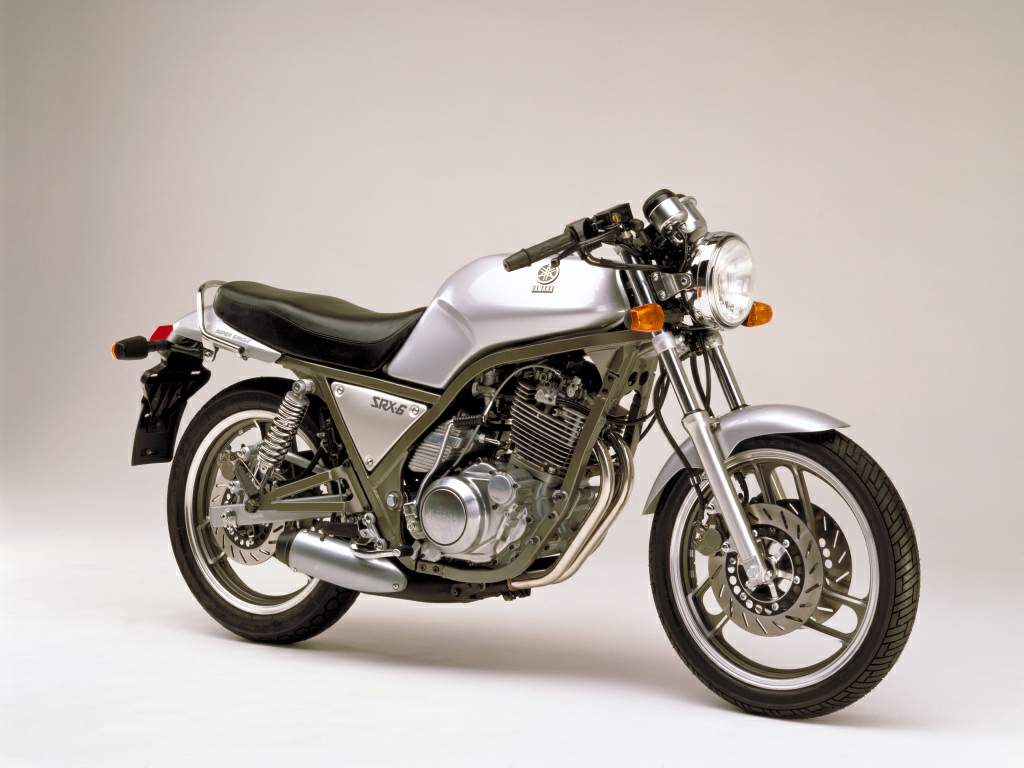

The Yamaha SRX is a motorcycle that was manufactured from 1985 to 1997 by the Yamaha Motor Company. In an attempt to repeat the success of the SR500, Yamaha placed a more modern engine derived from the XT600 into a light, sporty street bike. While still being an air-cooled, overhead-camshaft single-cylinder like its predecessor, the new engine featured a four-valved cylinder head, a two-staged carburetor, a balance shaft, and various improvements. The chassis was a lightweight steel frame with alloy wheels, a double disc brake on the front- and a single disc brake on the rear wheel.

However, unlike its cheaper predecessor, the SRX600 did not compete well on the international market. Nimble handling, light weight, and unique styling did not compete well with the heavier, faster multi-cylinder bikes available for a similar price. Still, Yamaha claims to have sold 19,000 units of the SRX.[1] In the USA, the SRX was officially sold only in 1986; in Germany, sales continued until 1990
