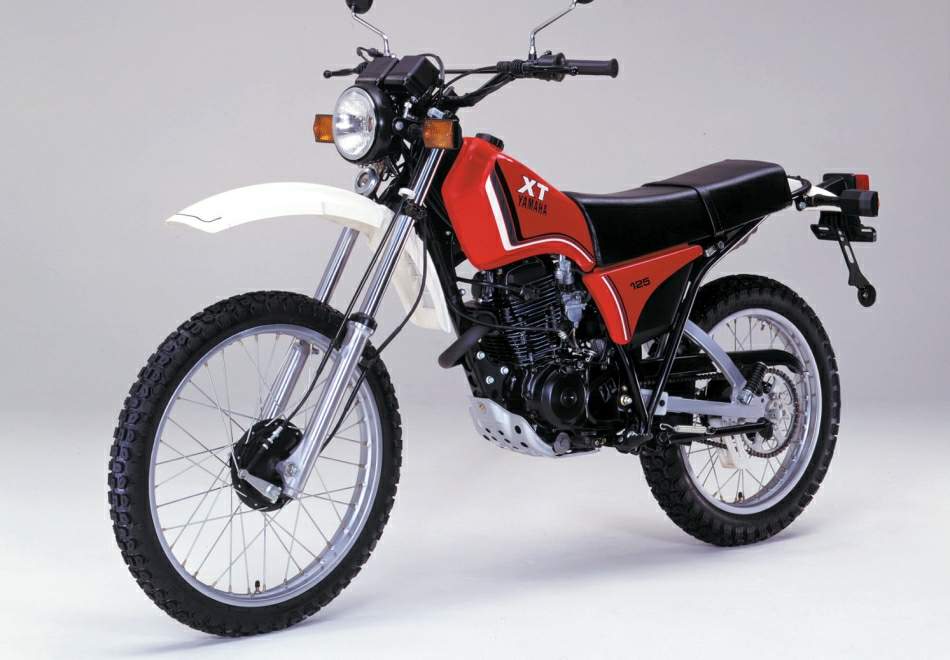

Yamaha XT 125

.

Make Model

Yamaha XT 125

Year

1983 -

Engine

Four stroke, single cylinder. SOHC, 2 valve

Capacity

124 cc / 7.6 cu-in
Bore x Stroke 57 х 48.8 mm
Cooling System Air cooled
Compression Ratio 10.0:1

Induction

Carburetor

Ignition

CDI
Starting Kick

Max Power

12.5 hp / 9.2 kW @ 8000 rpm

Max Torque

1.0 kg-m / 9.8 Nm @ 8000 rpm

Transmission

5 Speed
Final Drive Chain

Front Suspension

Telescopic forks

Rear Suspension

Motocross

Front Brakes

Drum

Rear Brakes

Drum

Front Tyre

2.75-21

Rear Tyre

4.10-18
Wheelbase 1330 mm / 52.3 in
Seat Height 835 mm / 32.4 in
Ground Clearance 265 mm / 10.4 in

Dry Weight

98 kg / 216 lbs

Fuel Capacity

7 Litres / 2.0 US gal

Consumption Average

78 mpg

Standing ¼ Mile

20 sec

Top Speed

75 mph
